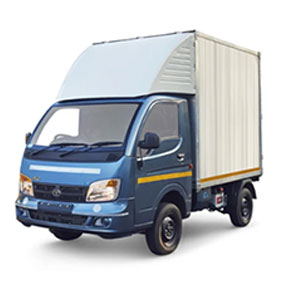

TATA ACE EV OVERVIEW

Presenting a glimpse into the future of commercial vehicles as Tata Motors hands off the keys to Ace EV - a cutting edge innovation that is moving India towards sustainable mobility in last mile delivery.

The Ace EV enhances convenience for businesses and transporters through Tata UniEVerse - a comprehensive ecosystem to deliver total infrastructure support, from charging stations, telematics and service to assistance and financing.

TATA ACE EV Features

Features designed for planning and profit

Info at your fingertips

  • 7-inch infotainment system
  • New gen instrument cluster

ENHANCED SAFETY

  • Tyre pressure monitoring system
  • Rear view camera

FUTURISTIC PERFORMANCE

  • 0 to 30 kmph in 7 secs
  • IP67 waterproofing standardsr
  • Best in class gradeability 22%

SMART CONNECTIVITY

  • Navigation
  • Vehicle tracking
  • Fleet telematics
  • Geo fencing

CHARGED FOR THE FUTURE

  • Battery charges while braking
  • Fast charging in 105 mins

SPECIFICATIONS

Take an in-depth look at the technical specifications that make all the difference

UNIQUE ADVANTAGES

  • Hi-speed charging - The Ace EV offers fast charging capability for higher on-road utilisation
  • Higher range - The Ace EV is designed for a Certified range of *154 kms
  • Highly reliable battery - The Ace EV comes equipped with a highly reliable battery with liquid cooling system
  • Secure transport - The Ace EV comes equipped with a Container Load Body for secure transport of goods
  • Electronic drive mode - The Ace EV features an electronic drive mode for enhanced driver convenience
ENGINE
  • Type : Lithium Ion Iron phosphate (LFP) Battery
  • Capacity CC : 21.3 kWh
  • Power : 27 kW
  • Torque : 130 Nm
  • Gradeability : 22%
Clutch and Transmission
  • Clutch : Clutch free, Rear wheel drive
  • Gear Box Type : Single speed Gearbox
  • Steering : Mechanical, Variable Ratio
  • Max Speed : 60 kmph
Brakes
  • Brakes : Front - Dual circuit Hydraulic brakes Front –Disc, Rear Drum
Wheels and Tyres
  • Tyres : 155 R13 LT 8PR
Vehicle Dimensions (mm)
  • Length : 3800
  • Width : 1500
  • Height : 2635(Unladen)
  • Wheelbase : 2100
  • Ground Clearance : 160
  • Min TCR : 4300
Weight (kg)
  • GVW : 1840
  • Payload : 600
Fuel Tank Capacity
  • Fuel Tank Capacity : 21.3 kWh
Performance
  • Gradability : 22%
Others
  • Seats : D+1
  • DEF Tank : NA
  • Warranty : 6 year/160000 Kms (HV battery)
