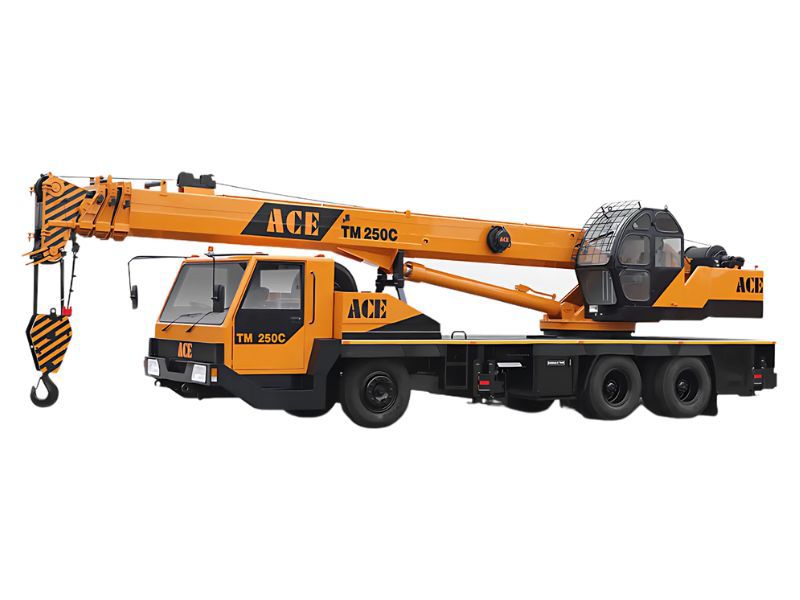

ACE TM 250 Base

Specifications of ACE TM 250 Base

Engine

• Engine Six cylinder Water cooled diesel engine developing 180 bhp@ 2400 rpm

Weights

• Outriggers Four hydraullically operated outriggers with vertical hydraulic jacks fiited with lock valves. Outrigger blocks are removable & stowable. One vertical jack also provide beneath driver cabin.

Body Capacities

• Structure Gear type hydraulic pump driven by Transmission PTO.

Transmission

• Top Speed 60 KMPH

Service Refill Capacities

• Fuel Tank 335 Itrs.

Specifications

• Optional Equipment Side folding lattice Jib - 8 mtrs.

Tires

• Tyres Size 10.00 X 20-16 PLY Rating (10+1)

Axles

• Brakes Air pressurized, diaphragm operated with dual Line arrangement. Flick Valves operated pneumatic hand brake on rear wheels only.
• Clutch Dry, Single Plate (380mm), hydraulically actuated diaphragm type.
• Front 6800 kgs
• Rear 20900 kgs
• total weight 27700 kgs

Cab

• Cabin Cabin with maximum all round vision is fitted with lockable door. All controls for crane motions & electrical controls are provided in the cabin. Cabin light & fan is also fitted.

SERVICE CAPACITIES

• Hydraulic Tank 400 Itrs.

Capacity

• Hydraulic System Gear type hydraulic pump driven by Transmission PTO.
• Transmission Six Speed Synchromesh Gear box.

Boom Performance

• Derricking Double acting hydraulic cylinder with counter balance safety valve.

Approximate Weights - Dual Slope

• Chassis Torsion proof chassis fabricated from high tensile steel plates. Outrigger boxes are integrated with the chassis. Drive is 6x4 (4 wheel drive and 2 wheel steer). Full width driver cabin is provided with driver and co- driver seating arrangements

Reach

• Telescopic Boom Reach to Pin Piston type hydraulic motor drives a pinion through reduction gear unit, Double counter balance valve is provided for smooth control and operations.

Loader and Grapple

• Slewing Angle Piston type hydraulic motor drives a pinion through reduction gear unit, Double counter balance valve is provided for smooth control and operations.

Hoist System

• Hoist Single line speed 90 m/min.
• Hoist Rope 16 mm Diameter
• Hoist System Hoist winch is provided with piston type hydraulic motor driving grooved hoist barrel via reduction. gear unit. The system is fitted with counter balance valve to control the speed of lowering
• Hook block 4 sheaves block is provided

Performance Data

• Derrick Angle -2% to 80°
• Derricking Time 50-60 secs
• Slew 0-2 RPM
