Bharat-Benz-5532T 6X4

Bharat-Benz 5532T 6X4 3975

4.0

Write a review

5 Reviews

Ex-showroom Price

₹ 46,94,000

Variants

Key Specs of Bharat-Benz 5532T 6X4 3975 Truck
  • Power
    Power
    236 kW @ 2200 rpm
  • GVW
    GVW
    55000 kgs with Suitable Three Axle Trailer
  • Wheelbase
    Wheelbase
    3975
  • Engine
    Engine
    OM 926
  • Fuel Tank
    Fuel Tank
    455L/ 430L

Specifications of Bharat-Benz 5532T 6X4 3975

Engine

  • Battery Capacity 120Ah
  • Emission norms Bharat Stage VI - OBD-2
  • Engine Type OM 926
  • Max Power 236 kW @ 2200 rpm
  • Max Torque 1250 Nm @ 1200 - 1600 rpm
  • No. of cylinders 6, 7200
  • Voltage 24V

Axle

  • AXLE RATIO 4.778
  • Front Axle IF 7.0
  • Rear Axle IRT390-11

Steering

  • Steering Hydraulic Power Assisted

Suspension

  • Anti-Roll Bar Front: Standard Rear: Standard For Tip Trailer Variant
  • Frame Section ( D x W x T) mm 288 x 70 x 9
  • Front Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
  • Rear Bogie Suspension For Standard Variants Parabolic Bogie With Bolsters For Tip Trailer Variants

Transmission

  • Clutch Single Dry Plate, Hydraulic Control
  • Clutch Dia, Wear (mm) 430, 4.5 mm
  • Gear Box model G 131, 9F+1R, Mechanical,
  • Power Take Off Gearbox PTO Spline - Optional
  • Type Synchromesh Gears

Brakes

  • Front Ø 410 drum
  • Parking Brakes Pneumatically Operated Hand Control Valve
  • Rear Ø 410 drum
  • Service Brakes Pneumatic, Foot Operated, Dual Line with ABS

Wheels

  • Size 295/90R20
  • Tyre Radial Tyres

Fuel Tank

  • Fuel Tank Capacity 455L/ 430L
  • Fuel Type Diesel

Dimension & Weight

  • Front Overhang (mm): 1485
  • Gross Vehicle Weight (GVW) 55000 kgs with Suitable Three Axle Trailer
  • Ground Clearance 255
  • Overall Height 2910
  • Overall Length 6935
  • Overall Width 2490
  • Rear Overhang (mm): 800
  • Wheel base 3975

Track

  • Gradeability 28.40%
  • Max Speed 80 kmph
  • Min. Turning Circle Diameter 16.7 m

Safety & Comfort

  • Tubeless Tyres 295/80R22.5

Additional information

  • Cabin Sleeper Cabin

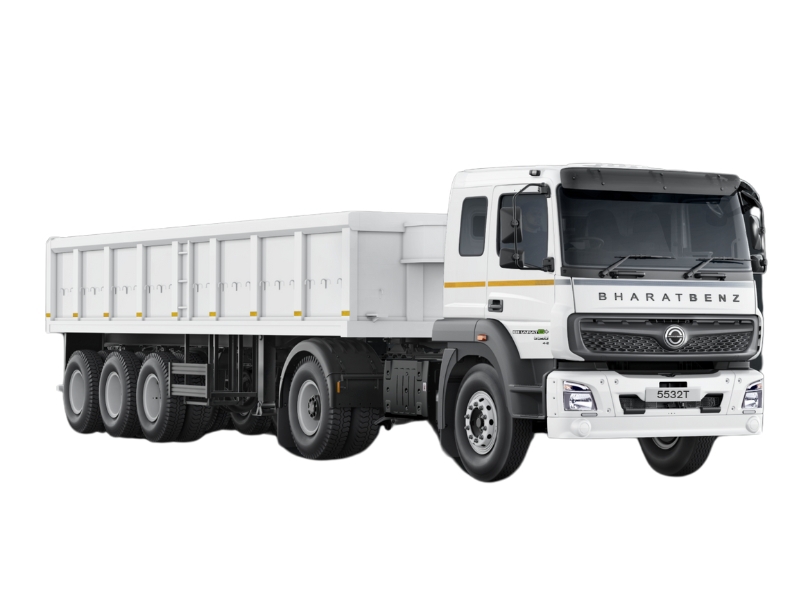

Bharat-Benz 5532T 6X4 3975 Pictures
