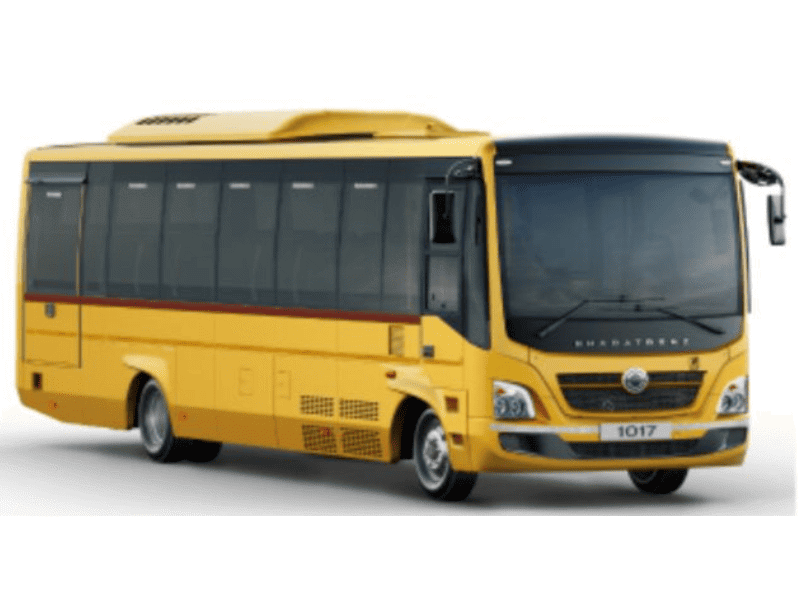

Bharat-Benz 1017 School Bus Non AC

Specifications of Bharat-Benz 1017 School Bus Non AC

Engine

• AC Compressor No
• Emission norms Bharat Stage VI - OBD-2
• Engine Type 4D34i
• Flooring Marine grade plywood, Anti-skid vinyl top layer
• Horse Power 125 kW @ 2500 rpm
• Max Torque 520Nm @ 1500rpm
• No. of cylinders 4 cylinder, 3907CC
• Rear Axle Ratio 4.56
• Voltage - (V) 24v

Axle

• Front Axle IF3.6
• Rear Axle DANAS 130

Suspension

• Frame Section ( D x W x T) mm 228 x80 X6
• Suspension Parabolic suspesnion with anti roll bar & double acting telescopic shock absorbers at front and rear

Transmission

• Gearbox G85, Improved 6 Speed Mechanical, Synchromesh Gears

Brakes

• Parking Brakes Spring Actuated with Hand Brake Valve
• Service Brakes Dual Circutt, full air, S-Cam type drum

Wheels

• Wheelbase (mm) 5300

Fuel Tank

• Adblue Tank 43L/36L
• Fuel Tank Capacity 171L/160L

Dimension & Weight

• Front Overhang (mm): 1335
• Gross Vehicle Weight (GVW) 10600kg
• Ground Clearance 192
• Overall Height (in mm) 2950
• Overall Length (in mm) 9815
• Overall Width (in mm) 2350
• Rear Overhang (mm): 3180

Safety & Comfort

• Power Steering Power Steering, adjustable and tiltable

TYRES

• Tyre Size 235/75 R 17.5 tubeless tyres

CLUTCH

• Diameter (mm) 362mm
• Type Organic, Single dry plate with Hydro Pneumatic Clutch Booster

BATTERY

• Battery Capacity 2x12V, 75Ah

Body Features

• AC & Compressor NO
• Emergency exit Door at rear RHS
• Emergency kit Fire Detection & Suppression System, Fire Alarm & Protection System
• Hatrack Grid type
• Lights LED lights with integrated night lamp distributed through saloon area
• Luggage Boot NO
• Passenger door In-swing, Manual, Pneumatic
• Seat capacity, Layout, type 39/49+1+D, 2x2/3x2, Bench / High Headrest
• Windows Sliding Glass
