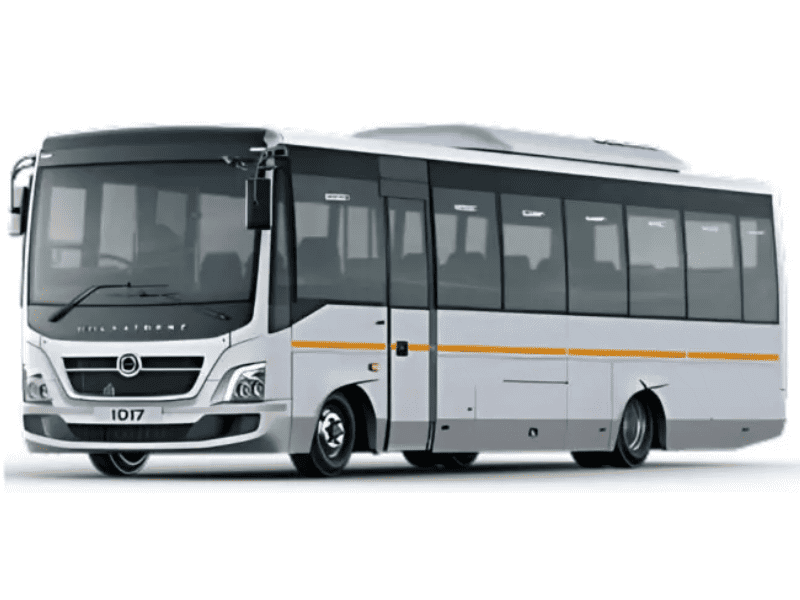

Bharat-Benz 1017 Staff Bus Non AC

Specifications of Bharat-Benz 1017 Staff Bus Non AC

Engine

• AC Compressor No
• Emission norms Bharat Stage VI - OBD-2
• Engine Type 4D34i
• Horse Power 125 kW @ 2500 rpm
• Max Torque 520Nm @ 1500rpm
• No. of cylinders 4 cylinder, 3907CC
• Rear Axle Ratio 4.56
• Voltage - (V) 24V

Axle

• Front Axle IF36
• Rear Axle DANASS 130

Suspension

• Frame Section ( D x W x T) mm 228 x80x6
• Suspension Parabolic suspesnion with anti roll bar & double acting telescopic shock absorbers at front and rear

Transmission

• Gearbox G85, Improved 6 Speed Mechanical, Synchromesh Gears

Brakes

• Parking Brakes Spring Actuated with Hand Brake Valve
• Service Brakes Dual Circutt, ful air, S-Cam type drum

Wheels

• Wheelbase (mm) 5300

Fuel Tank

• Adblue Tank 43L736L
• Fuel Tank Capacity 171L 7 160L

Dimension & Weight

• Front Overhang (mm): 1335
• Gross Vehicle Weight (GVW) 10600kg
• Ground Clearance 192
• Overall Height (in mm) 2950
• Overall Length (in mm) 9815
• Overall Width (in mm) 2350
• Rear Overhang (mm): 3180

Safety & Comfort

• Power Steering Power Steering, adjustable and tiltable

TYRES

• Tyre Size 235/75 R 17.5 tubeless tyres

BATTERY

• Battery Capacity 2x12V, 75Ah

Gearbox & Clutch

• Clutch Diameter (mm) 362mm
• Clutch Type Organic, Single dry plate with Hydro Pneumatic Clutch Booster

Body Features

• AC & Compressor NO
• Emergency exit Door at rear RHS
• Emergency kit Fire extinguisher, First-Aid kit
• Floor Marine grade plywood, Anti-skid vinyl top layer
• Hatrack Tubular Hatrack
• Lights LEDIights with integrated night lamp distributed through saloon area
• Luggage Boot NO
• Passenger door In-swing, Manual / Pneumatic
• Seat capacity, Layout, type 26/35/39+1+D,2x1/2x2, Pushback / High Headrest (3-point seatbelt optional)
• Windows Sliding Glass
