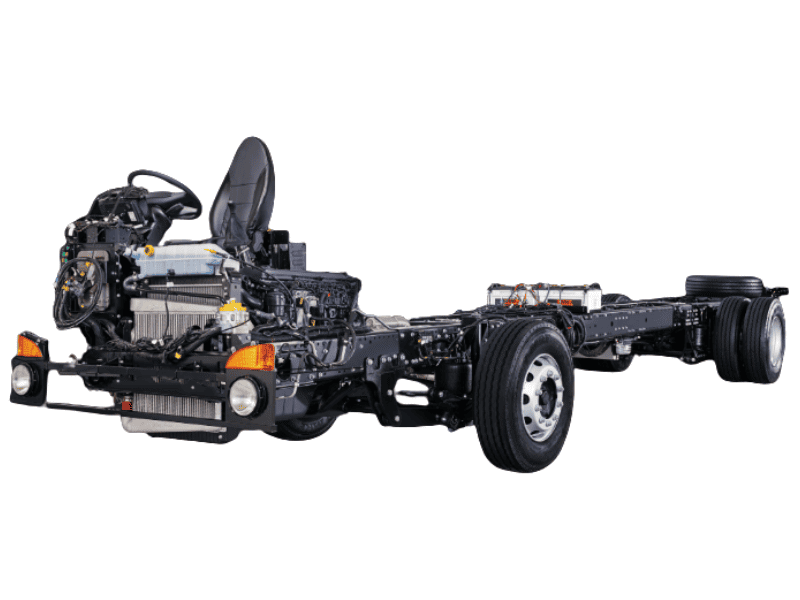

Bharat-Benz 1624 Bus Chassis Base

Specifications of Bharat-Benz 1624 Bus Chassis Base

Engine

• Displacement (cc) 7200 CC
• Emission norms Bharat Stage VI (OBD-II)
• Engine Type 0M926
• Horse Power 180 kW @ 2200 rpm
• Max Torque 850 Nm @ 1200 - 1600 rpm
• No. of cylinders 6 Cylinders,
• Voltage - (V) 24v

Axle

• AXLE RATIO 4.77
• Front Axle IF6.6
• Rear Axle IR440

Suspension

• Anti-Roll Bar At Front and Rear with Double Acting Telescopic Shock Absorber
• Frame Section ( D x W x T) mm 255x73.5x7
• Front Suspension Pneumatic/Parabolic
• Rear Suspension Pneumatic/Parabolic

Transmission

• Gearbox G85 0D, 6-Speed Mechanical, Synchromesh Gears

Brakes

• Parking Brakes Spring Actuated with Hand Brake Valve
• Service Brakes Dual Circuit, Full Air, S-Cam Type Drum

Wheels

• Wheelbase (mm) 5950

Fuel Tank

• Adblue Tank 60L/50L
• Fuel Tank Capacity 380L/355L

Dimension & Weight

• Front Overhang (mm): 2305
• Gross Vehicle Weight (GVW) 16700 kg
• Ground Clearance 239
• Overall Height (in mm) 2335
• Overall Length (in mm) 11765
• Overall Width (in mm) 2530
• Rear Overhang (mm): 3510

Safety & Comfort

• Power Steering Power Steering, Tiltable & Telescopic (Pneumatic Assist)

TYRES

• Tyre Size 295/80 R22.5 Radial Tubeless Tyres

CLUTCH

• Diameter (mm) 395 mm
• Type Organic, Single Dry plate

BATTERY

• Battery Capacity 2x12V, 200Ah
