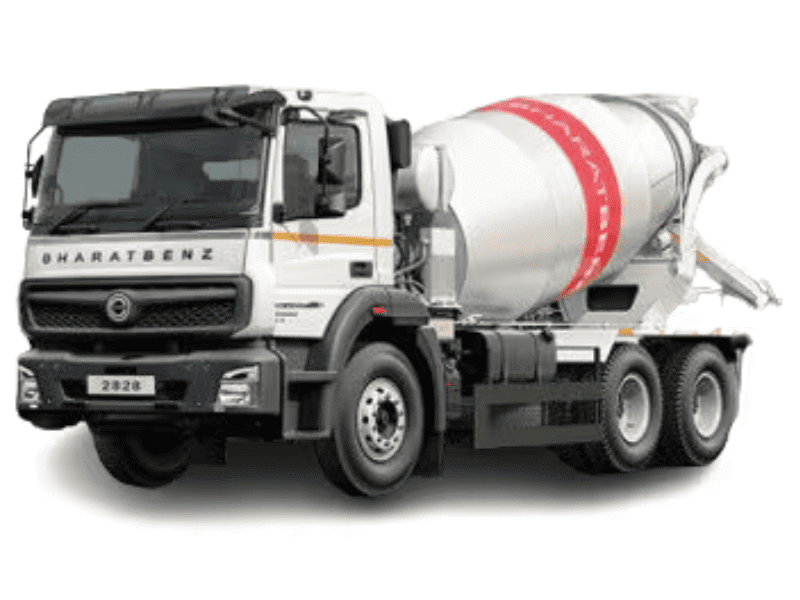

Bharat-Benz 2828C RMC 9 Cum

Specifications of Bharat-Benz 2828C RMC 9 Cum

Engine

• Engine Type OM 926 BSVI OBD-11
• Front Brakes 410, drum
• Horse Power 280hp (210kW)@ 2200 rpm
• Max Torque 1100Nm@ 1200 -1600 rpm
• No. of cylinders 6,7200CC
• Rear Brakes 410, drum

Axle

• Front Axle IF 7.0
• Rear Axle IRT 390-11 Single Reduction with Diff Lock

Suspension

• Anti-Roll Bar Front & Rear: Standard
• Frame Section ( D x W x T) mm 288 X 70 X 9
• Front Suspension Parabolic Type Leaf Spring with Shock Absorbers
• Rear Suspension Bogie Suspension

Transmission

• Gear Box G131, 9F + 1 R & Manual - Synchromesh
• Power Take Off Standard, Spline Type

Brakes

• Parking Brakes Pneumatically Operated Hand Control Valve
• Service Brakes Pneumatic Foot Operated, Dual Line with ABS

Wheels

• Wheelbase (mm) 4575

Fuel Tank

• Adblue Tank 60/ 50
• Fuel Tank Capacity 280 / 260

Dimension & Weight

• Front Overhang (mm): 1485
• Gross Vehicle Weight (GVW) 28000
• Ground Clearance 290
• Overall Height (in mm) 3830
• Overall Length (in mm) 9475
• Overall Width (in mm) 2600
• Rear Overhang (mm): 2740

Safety & Comfort

• Power Steering Hydraulic Power Assisted (Telescopic And Tilt Type)

Additional information

• Load Body Type 9 Cum

Performance

• Gradeability (%) 60
• Max Speed 60
• TCD (m) 16.12

Cabin Design

• Cabin Day Cabin

Specification

• REAR AXLE RATIO 5.375

CLUTCH

• Diameter (mm) 430, 4.5
• Type Single Dry Plate

BATTERY

• Battery Capacity 120Ah, 24V

Wheels and Tyres

• Tyres 295/90R20
