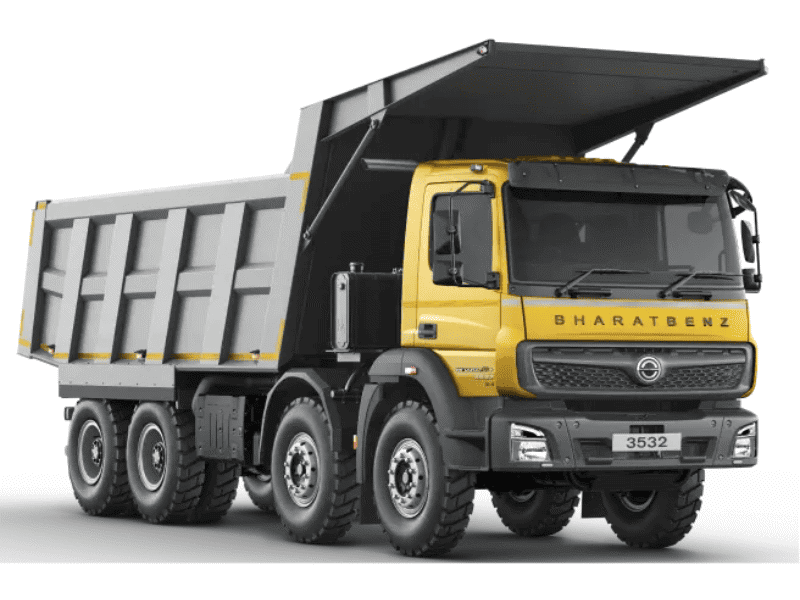

Bharat-Benz 3532CM TORQSHIFT 19.5 Scoop

Specifications of Bharat-Benz 3532CM TORQSHIFT 19.5 Scoop

Engine

• Engine Type 0M926 BSVI 0BD-II
• Front Brakes @410 drum
• Horse Power 316hp (236kW) @ 2200 rpm
• Max Speed 60
• Max Torque 1250 Nm @ 1200 - 1600 rpm
• No. of cylinders 6,7200
• Rear Axle Ratio 6.18
• Rear Brakes @410 drum

Axle

• Front Axle IF 7.5 (Forged - Reverse Elliot)
• Rear Axle MT36 (Hub reduction)

Suspension

• Anti-Roll Bar Front & Rear - Standard
• Frame Section ( D x W x T) mm 288x70x9
• Front Suspension 4 leaf Parabolic leaf spring
• Rear Suspension Tandem, multi leaf bogie

Transmission

• Gear Box TORQSHIFT, 12F + 4R
• Power Take Off Standard

Brakes

• Service Brakes Pneumatic - Dual line with ABS & Hill Hold Assist

Wheels

• Wheelbase (mm) 5175

Fuel Tank

• Adblue Tank 36
• Fuel Tank Capacity 310

Dimension & Weight

• Front Overhang (mm): 1485
• Gross Vehicle Weight (GVW) 35000
• Ground Clearance 359
• Overall Height (in mm) 3800
• Overall Length (in mm) 9015
• Overall Width (in mm) 2550
• Rear Overhang (mm): 940

Safety & Comfort

• Power Steering Hydraulic Power Assisted (Tilt and Telescopic)

Additional information

• Load Body Type 19.5 Scoop

Performance

• Gradeability (%) 59
• TCD (m) 19.5

Cabin Design

• Cabin Day Cabin

CLUTCH

• Diameter (mm) 430
• Type Single Dry Plate - Organic

BATTERY

• Battery Capacity 120Ah, 24V

Wheels and Tyres

• Tyres 12x20 Mine lug with 8.5x20 wheel rim
