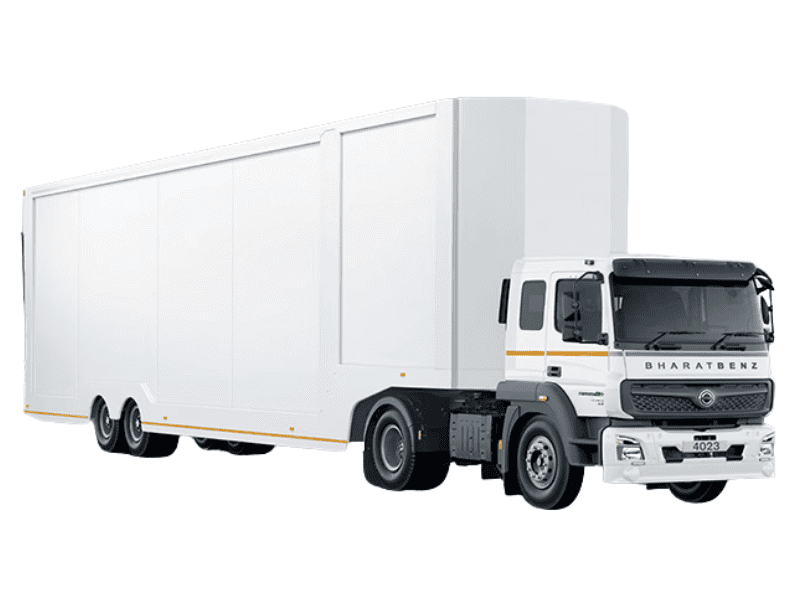

Bharat-Benz 4023T Base

Specifications of Bharat-Benz 4023T Base

Engine

• Emission norms Bharat Stage VI - OBD-2
• Engine Type OM 926
• Front Brakes Ø 410 drum
• Horse Power 180 kW @ 2200 rpm
• Max. Torque 850 Nm @ 1200 - 1600 rpm
• No. of cylinders 6, 7200cc
• Rear Axle Ratio 4.778 - Standard Variant 4.3 - Car Carrier Variant
• Rear Brakes Ø 410 drum

Axle

• Front Axle IF 7.0
• Rear Axle IR440-11

Suspension

• Anti-Roll Bar Front: Standard
• Frame Section ( D x W x T) mm 288 x 70 x 9
• Front Suspension Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
• Rear Suspension Semi-Elliptical With Auxiliary Springs

Transmission

• Gear Box G 131, 9F+1R, Mechanical, Synchromesh Gears
• Power Take Off Auxiliary Fitment

Brakes

• Parking Brakes Pneumatically Operated Hand Control Valve
• Service Brakes Pneumatic, Foot Operated, Dual Line with ABS

Wheels

• Wheelbase (mm) 3300

Fuel Tank

• Adblue Tank 60L/ 51L
• Fuel Tank Capacity 455L/ 430L

Dimension & Weight

• Front Overhang (mm): 1485
• Gross Vehicle Weight (GVW) 39500 kgs - Tandem Axle With Mechanical Suspension 37200 kgs - Car Carrier Trailers
• Ground Clearance 237
• Overall Height (in mm) 2960
• Overall Length (in mm) 5780
• Overall Width (in mm) 2490
• Rear Overhang (mm): 995

Safety & Comfort

• Power Steering Hydraulic Power Assisted

Performance

• Gradeability (%) 26.3% (4.778 RAR) 25.9% (4.3 RAR)
• Max Speed 80 kmph
• TCD (m) 12.8 m

Cabin Design

• Cabin Sleeper Cabin

CLUTCH

• Diameter (mm) 395, 3.9 mm
• Type Single Dry Plate, Hydraulic Control

BATTERY

• Battery Capacity 120Ah
• Battery Type,Voltage 4 V 24V

Wheels and Tyres

• Tyres Radial Tyres - 295/90R20 Tubeless Tyres - 295/80R22.5
