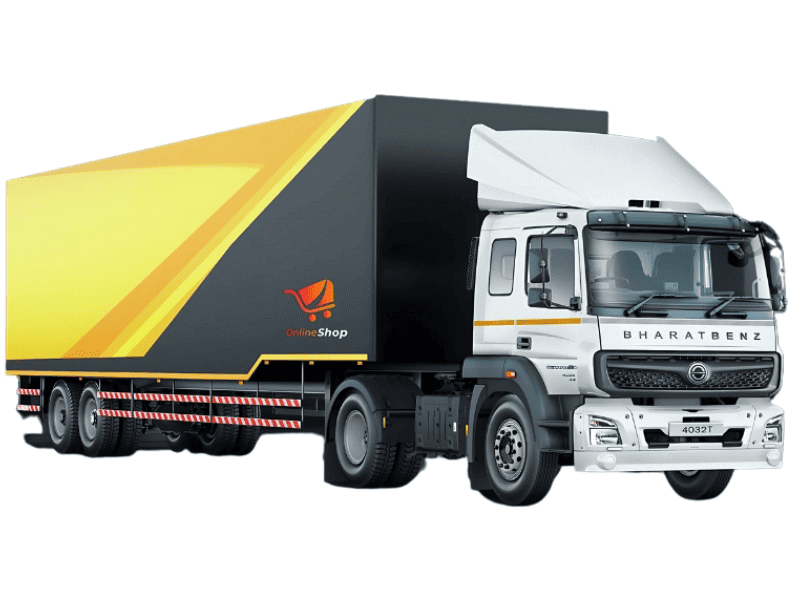

Bharat-Benz 4032T TORQSHIFT 3600

Specifications of Bharat-Benz 4032T TORQSHIFT 3600

Engine

• Engine Type OM 926, BSVI OBD-II
• Front Brakes 410x220
• Horse Power 320 hp (236kW) @ 2200 rpm
• Max Torque 1250 Nm @ 1200 - 1600 rpm
• No. of cylinders 6, 7200CC
• Rear Axle Ratio 4.3
• Rear Brakes 410x220
• Voltage - (V) 12Vx2

Axle

• Front Axle IF 7.0
• Rear Axle IR 440

Suspension

• Anti-Roll Bar Front
• Frame Section ( D x W x T) mm 288 x 70 x 9
• Front Suspension Parabolic Leaf Spring
• Rear Suspension 2 Stage Semi Elliptical

Transmission

• Gear Box TORQSHIFT, 12F + 4R
• Power Take Off Optional

Brakes

• Parking Brakes Pneumatically Operated Hand Control Valve
• Service Brakes Pneumatic, Dual Line with ABS

Wheels

• Wheelbase (mm) 3600

Fuel Tank

• Adblue Tank 60L/ 51L
• Fuel Tank Capacity 455L/ 430L

Dimension & Weight

• Front Overhang (mm): 1485
• Gross Vehicle Weight (GVW) 41500 kgs
• Ground Clearance 230
• Overall Height (in mm) 2975
• Overall Length (in mm) 6063
• Overall Width (in mm) 2490
• Rear Overhang (mm): 978

Safety & Comfort

• Power Steering Tilt & Telescopic 4-spoke steering wheel with Hydraulic power assistance

Performance

• Gradeability (%) 37
• Max Speed 80

Cabin Design

• Cabin Sleeper

CLUTCH

• Diameter (mm) 430
• Type Single Dry Plate - Organic

BATTERY

• Battery Capacity 120Ah

Powertrain

• Emission standard Bharat Stage VI - OBD-2

Wheels and Tyres

• Tyres Tubeless Tyres - 295/80R22.5
