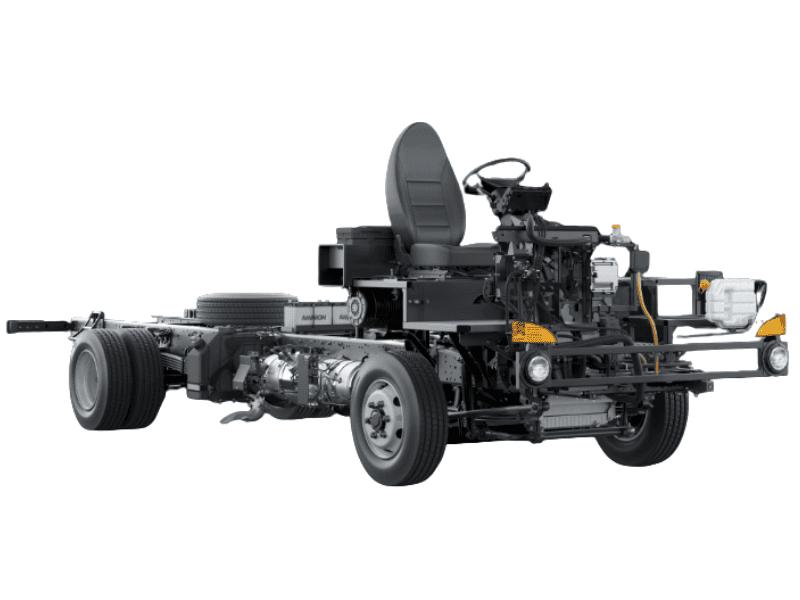

Bharat-Benz 917 Bus Chassis Non AC

Specifications of Bharat-Benz 917 Bus Chassis Non AC

Engine

• AC Compressor NO
• Emission norms Bharat Stage VI - OBD-2
• Engine Type 4D34i
• Horse Power 125 kW @ 2500 rpm
• Max Torque 520Nm @ 1500rpm
• No. of cylinders 4 cylinder, 3907CC
• Voltage - (V) 24V

Axle

• AXLE RATIO 4.56
• Front Axle IF3.6
• Rear Axle DANAS 130

Suspension

• Frame Section ( D x W x T) mm 228 X 80 X 6
• Suspension Parabolic suspesnion with anti roll bar & double acting telescopic shock absorbers at front and rear

Transmission

• Gearbox G85, Improved 6Speed Mechanical,Synchromesh Gears

Brakes

• Parking Brakes Spring Actuated with Hand Brake Valve
• Service Brakes Dual Circuit, full air, S-Cam type drum

Wheels

• Wheelbase (mm) 4250

Fuel Tank

• Adblue Tank 43L / 36L
• Fuel Tank Capacity 171L / 160L

Dimension & Weight

• Front Overhang (mm): 1193
• Gross Vehicle Weight (GVW) 9600 kg
• Ground Clearance 192
• Overall Height (in mm) 2153
• Overall Length (in mm) 7383
• Overall Width (in mm) 2199
• Rear Overhang (mm): 1940

Safety & Comfort

• Power Steering Power Steering, adjustable and tiltable

TYRES

• Tyre Size 235/75 R 17.5 tubeless tyres

CLUTCH

• Diameter (mm) 362mm
• Type Organic, Single dry plate with Hydro Pneumatic Clutch Booster

BATTERY

• Battery Capacity 2x12V, 75Ah
