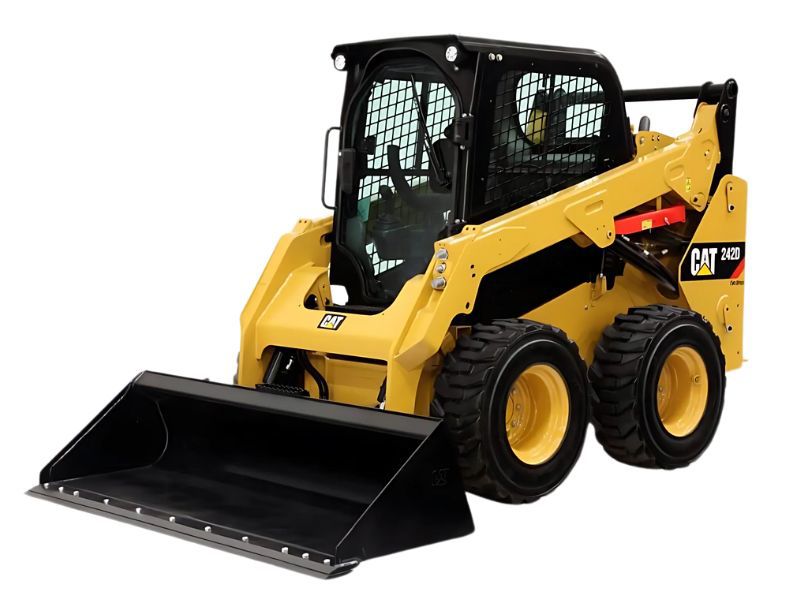

Caterpillar 242D Base

Specifications of Caterpillar 242D Base

Engine

• Bore 94.0 mm
• Displacement 3.3 L
• Engine Model Cat C3.3B DIT (Turbo)
• Gross Power 55.4 kW
• Gross Power SAE J1995 55.4 kW
• Net Flywheel Power 53.8 kW
• Net Power EEC ISO 9249 54.3 kW
• Net Power SAE 1349 53.8 kW
• Stroke 120.0 mm

Weights

• Operating Weight 3166.0 kg

Service Refill Capacities

• Chain box, each side 8.8 L
• Cooling System 14.0 L
• Engine Crankcase 11.0 L
• Fuel Tank 105.0 L
• Hydraulic System 50.0 L
• Hydraulic Tank 39.0 L

Operating Specifications

• Breakout Force, Tilt Cylinder 2283.0 kg
• Rated Operating Capacity 975.0 kg
• Rated Operating Capacity w/Optional Counterweight 1066.0 kg
• Tipping Load 1950.0 kg

Dimensions

• Bucket Pin Height at Carry Pos. 200.0 mm
• Bucket Pin Height at Max Lift 3076.0 mm
• Bucket Pin Reach at Max Lift 182.0 mm
• Bumper Overhang - Rear Axle 1021.0 mm
• Clearance at Max Lift and Dump 2285.0 mm
• Departure Angle 27°
• Ground Clearance 222.0 mm
• Height to Top of Cab 2111.0 mm
• Length w/Bucket on Ground 3487.0 mm
• Length w/o Bucket 2767.0 mm
• Max Overall Height 3917.0 mm
• Max. Reach w/Arms-Parallel 1249.0 mm
• Maximum Dump Angle 52°
• Rack Back Angle at Max Height 87°
• Reach at Max Lift and Dump 552.0 mm
• Turn Radius from Ctr - Bucket 2107.0 mm
• Turn Radius from Ctr - Coupler 1314.0 mm
• Turn Radius from Ctr - Rear 1639.0 mm
• Vehicle Width over Tires 1676.0 mm
• Wheelbase 1105.0 mm

Hydraulic System

• Hydraulic Flow Standard
• Hydraulic Flow High Flow
• Hydraulic Power (calculated) 43.0 kW
• Hydraulic Power (calculated) 29.0 kW
• Loader Hydraulic Flow 112.0 L/min
• Loader Hydraulic Pressure 23000.0 kPa
• Loader Hydraulic Flow 76.0 L/min
• Loader Hydraulic Pressure 23000.0 kPa

Cab

• FOPS ISO 3449:2005 Level I
• FOPS Level II ISO 3449:2005 Level II
• ROPS ISO 3471:2008

Power Train

• Travel Speed Forward 12.1 km/h
• Travel Speed Forward - 2-Speed Option 18.5 km/h
• Travel Speed Reverse 12.1 km/h
• Travel Speed Reverse - 2-Speed Option 18.5 km/h
