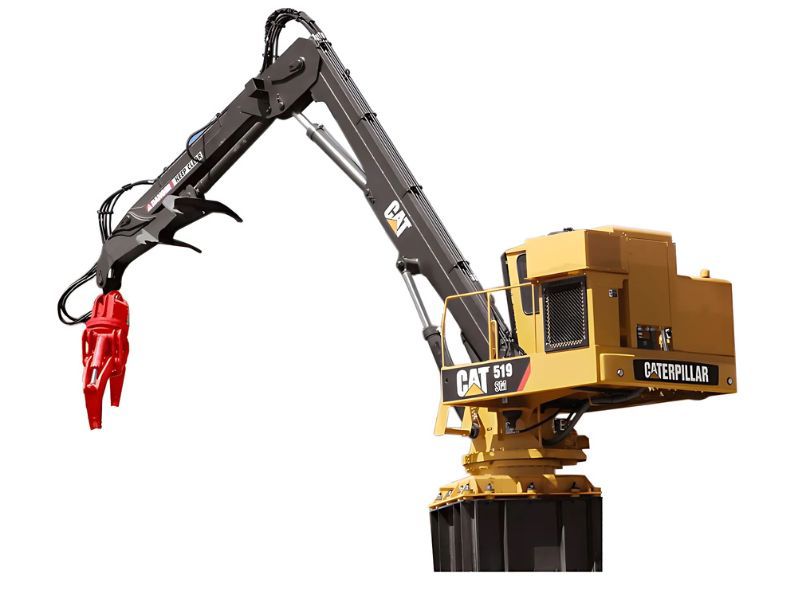

Caterpillar 519 SM Stationary Mount

Specifications of Caterpillar 519 SM Stationary Mount

Engine

• Gross Power 55.9 kW

Weights

• Operating Weight 7218.9 kg

Service Refill Capacities

• Fuel Tank 159.0 L

Operating Specifications

• Electric Motor 56.0 kW
• Electric Power Supply 460 Volt: 60 HZ
• Grapple Mounting Knuckle Length 228.6 mm
• Knuckleboom Length 8.2 m
• Operating Weight 7218.9 kg
• Swing Bearing Diameter 1092.2 mm
• Swing Bearing Gearing External

Dimensions

• Maximum reach 9.9 m

Hydraulic System

• Cylinders - Live Heel 127 mm X 76 mm (5 in X 3 in)
• Cylinders - Main 152 mm X 102 mm (6 in X 4 in)
• Cylinders - Stick 152 mm X 102 mm (6 in X 4 in)
• Hydraulic Flow 167/125/83 L/min (44/33/22 gpm)
• Hydraulic Pressure - Swing 16547.4 kPa
• Hydraulic Pressure - System 15168.5 kPa
• Swing Speed 8.0 RPM
