Caterpillar-584 HD

Price not available

Caterpillar 584 HD Base

Variants

Specifications of Caterpillar 584 HD Base

Engine

  • Displacement 7.2 L
  • Engine Model Cat® C7 ACERT™
  • Gross Power 204.0 kW
  • Torque 1182.0 N·m

Weights

  • Operating Weight 23088.0 kg
  • Operating Weight - HD 8WD 23088.0 kg

Transmission

  • Transmission hydrostatic, 2-speed drop box

Service Refill Capacities

  • Fuel Tank 255.0 L
  • Hydraulic Fluid Reservoir 174.0 L

Standards

  • FOPS ISO 3449:2005 (LEVEL II), ISO 8083:2006
  • OPS ISO 8084:2003, SAE J1084, SEP2002, BC WCB G603, MAR90
  • ROPS ISO 3471:1994, ISO 8082:2003

Operating Specifications

  • Load Capacity 20000.0 kg
  • Load Capacity - HD 8WD 20000.0 kg
  • Loader Reach 8.5 m
  • Low Speed 7.0 km/h
  • Maximum Speed 20.9 km/ h
  • Steering Angle 42.0 Degrees
  • Tractive Ability 234.0 kN

HYDRAULIC SYSTEMS

  • Flow Rate 284.0 L/ min
  • Working Pressure – max 21.5 Mpa

Wheels/Tires - Standard

  • Size 750/55 × 26.5

Bunk Area

  • Bunk Area 5.5 m2
  • Load Bunks moveable
  • Optional Bunk Area 6.25 m2

Loader and Grapple

  • Grapple type Epsilon FG37
  • Grapple type, optional Epsilon FG43S
  • Lifting Torque, Gross 159.0 kN·m
  • Loader type Epsilon X120F
  • Reach 8.0 m
  • Rotator type G141
  • Slewing Angle 380.0 Degrees
  • Slewing Torque, Gross 45.0 kN·m

You can help other customers

Have you used this car?

Write A Review

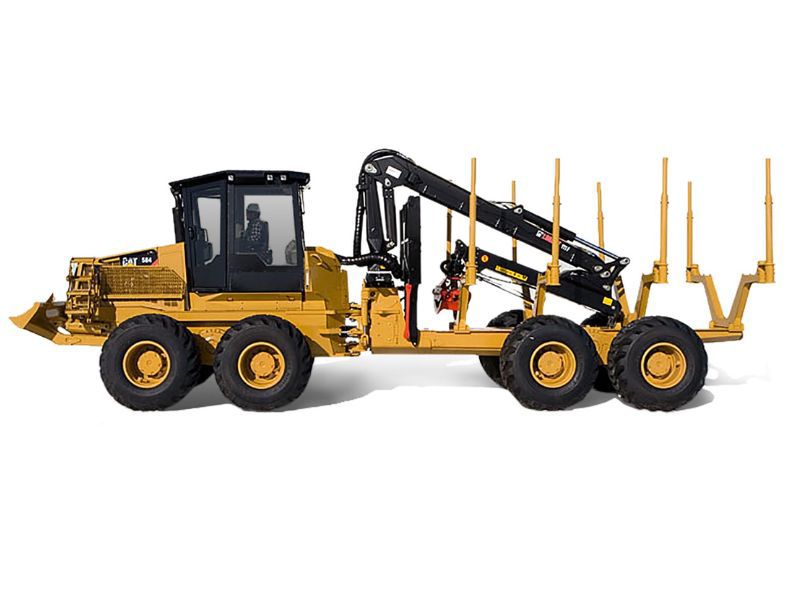

Caterpillar 584 HD Base Pictures
