Caterpillar 621K Open Bowl Scrapers Truck Description

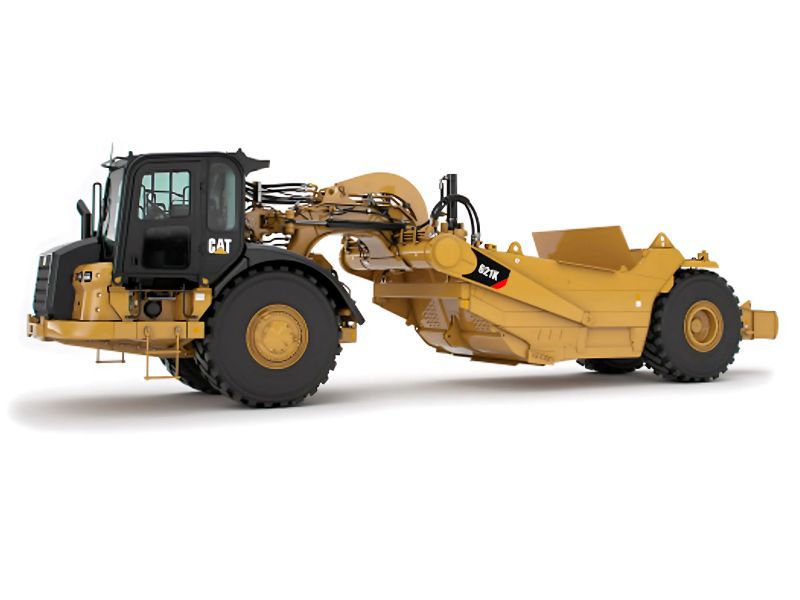

The Caterpillar 621K Open Bowl Scraper offers exceptional fuel efficiency and an advanced steering system. This machine makes excavation and hauling in large areas fast and easy. Its ergonomic design reduces operator fatigue and increases safety. Visit MotorBazee to check the technical data and pricing details, which will help you choose the right machine for your earthmoving business.
Key Specifications of Caterpillar 621K Open Bowl Scrapers Equipment
-
Wheelbase
7998.0 mm
Calculate Caterpillar 621K Open Bowl Scrapers Monthly EMI
20
Monthly EMI
Down Payment
₹ 0
Total Loan Amount
₹ 0
Specifications of Caterpillar 621K Open Bowl Scrapers
Engine
- Engine Model: Tractor Cat C13 ACERT™
- Flywheel Power: Tractor 304.0 kW
- Note Cat C13 ACERT engine meets U.S. Environmental Protection Agency (EPA) Tier 4 Final/EU Stage IV engine emission standards.
- Rated Engine RPM: Tractor 2000.0 RPM
Transmission
- Top Speed (Loaded) 53.9 km/h
Service Refill Capacities
- Cooling System 45.0 L
- Crankcase 30.58 L
- Diesel Exhaust Fluid 30.5 L
- Fuel Tank 818.0 L
- Hydraulic System 83.0 L
- Transmission System 93.0 L
Dimensions
- Axle to Vertical Hitch Pin 540.0 mm
- Front of Tractor to Front Axle 3119.0 mm
- Ground Clearance - Tractor 557.0 mm
- Height - Overall Shipping 4029.0 mm
- Height - Scraper Blade Maximum 520.0 mm
- Height - Top of Cab 3612.0 mm
- Length - Maximum (Push-Pull) 15576.0 mm
- Length - Overall Machine (Standard) 14015.0 mm
- Rear Axle to Rear of Machine 2898.0 mm
- Wheelbase 7998.0 mm
- Width - Inside of Bowl 3048.0 mm
- Width - Outside Rear Tires 3275.0 mm
- Width - Overall Machine 3585.0 mm
- Width - Overall Machine - Ladder Down 3790.0 mm
- Width - Rear Tire Centers 2290.0 mm
- Width - Tractor 3381.0 mm
Cab
- Exterior Sound Level The exterior sound power level for the standard machine (ISO 6393) is 111.5 dB(A).
- ROPS/FOPS Meets SAE and ISO standards
General Data
- 180° Curb-to-Curb Turning Width 11.8 m
- Fuel Tank Refill Capacity: Scraper 763.0 L
- Maximum Depth of Cut 315.0 mm
- Maximum Depth of Spread 540.0 mm
- Overall Shipping Height 4.03 m
- Overall Width 3.57 m
- Rated Load 26 127 kg (57,610 lb); 26.19 tonnes (28.81 tons)
- Scraper Capacity: Heaped 18.4 m3
- Scraper Capacity: Struck 13.0 m3
- Tires: Scraper 33.25R29**E3
- Tires: Tractor Drive 33.25R29**E3
- Top Speed (Loaded) 53.9 km/h
- Width of Cut 3.14 m
Implement Cycle Times
- Apron Lower 3.8 Seconds
- Apron Raise 2.95 Seconds
- Bail Lower 3.2 Seconds
- Bail Raise 1.8 Seconds
- Bowl Lower 3.5 Seconds
- Bowl Raise 3.0 Seconds
- Ejector Extend 5.2 Seconds
- Ejector Retract 6.7 Seconds
Travel Speeds (Runout)
- Transmission Gear: Eighth 53.9 km/h
- Transmission Gear: Fifth 21.9 km/h
- Transmission Gear: First 5.0 km/h
- Transmission Gear: Fourth 16.3 km/h
- Transmission Gear: Reverse 9.2 km/h
- Transmission Gear: Second 8.9 km/h
- Transmission Gear: Seventh 39.9 km/h
- Transmission Gear: Sixth 29.6 km/h
- Transmission Gear: Third 12.1 km/h
Safety Criteria Compliance Standards
- Brakes ISO 3450:1996
- Falling Object Protective Structure (FOPS) ISO 3449:2005 Level II
- Reverse Alarm ISO 9533:2010
- Rollover Protection Structure (ROPS) ISO 3471:2008 for up to 17 084 kg (37,664 lb)
- Seat Belt SAE J386:JUN1985
- Steering System ISO 5010:2007
Scraper Bowl
- Scraper Capacity: Heaped 18.4 m3
Tractor Engine
- Flywheel Power: Tractor/Scraper 304 kW (407 hp)
Non Push-Pull
- Operating Weight (Empty) 36185.0 kg
- Overall Length 14.02 m
Push-Pull
- Operating Weight (Empty) 36567.0 kg
- Overall Length (With Bail Down) 15.58 m
Caterpillar 621K Open Bowl Scrapers Reviews
0.0
Overall
Based on 0 Reviews
Write Review
Frequently Asked Questions
The Caterpillar 621K Open Bowl Scraper is designed for excavation and hauling in large areas, offering exceptional fuel efficiency and an advanced steering system. Its ergonomic design helps reduce operator fatigue while increasing overall safety during earthmoving operations.
The Cat C13 ACERT™ Flywheel Power, which drives this machine, meets U.S. Environmental Protection Agency (EPA) Tier 4 Final/EU Stage IV engine emission standards. This ensures compliance and modern performance for your earthmoving needs.
The scraper has a rated load capacity of 26,127 kg (57,610 lb) or 26.19 tonnes (28.81 tons). Furthermore, its scrap capacity ranges from 13.0 m3 (struck) to 18.4 m3 (heaped).
In Push-Pull configuration, the machine's overall length is reported as 15,576.0 mm when including the bail down. This variation allows for enhanced operational flexibility compared to the standard machine length of 14,015.0 mm.
The overall width of the machine can reach 3,585.0 mm. In terms of travel speed, it has various top speeds depending on the transmission gear selected, such as 53.9 km/h in eighth gear or 21.9 km/h in fifth gear.
