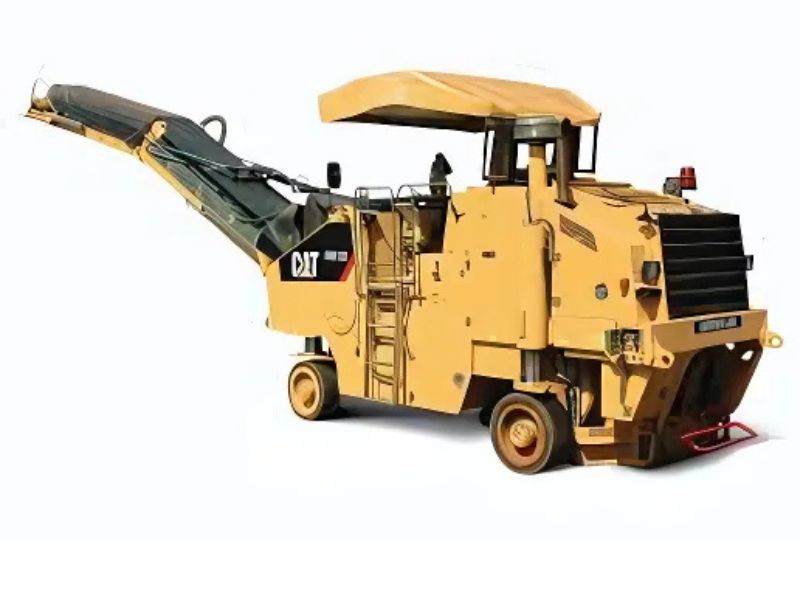

Caterpillar PM102 - Track Base

Specifications of Caterpillar PM102 - Track Base

Engine

• Engine Model C7 with ACERT
• Gross Power 168.0 kW

Weights

• Operating Weight with full water tank 17600.0 kg
• Shipping Weight with empty water tank 17100.0 kg

Service Refill Capacities

• Fuel Tank Capacity 400.0 L
• Water Spray System 1060.0 L

Operating Specifications

• Inside Turning Radius 3.45 m
• Maximum Travel Speed 4.1 km/h
• Operating Speed 27.0 m/min

Dimensions

• Maximum Operating Height 3.4 m
• Maximum Truck Clearance 4.8 m
• Minimum Operating Height 2.38 m
• Operating Length (conveyor up) 10.7 m
• Operating Width 1.98 m
• Shipping Length – base machine 5.33 m
• Shipping Length – with conveyor folded 8.5 m
• Shipping Maximum Height 3.1 m
• Shipping Width 2.5 m

Rotor Assembly

• Cutting Width 1000.0 mm
• Maximum Cutting Depth 305.0 mm
• Number of Cutting Tools 97

Conveyor System

• Discharge Conveyor Length 6.3 m
• Discharge Conveyor Maximum Speed 600.0 mm
• Discharge Conveyor Swing (from center) 252.0 m/min
• Discharge Conveyor Width 41.0 Degrees
• Collecting Conveyor Speed 252.0 m/min
• Collecting Conveyor Width 550.0 mm
