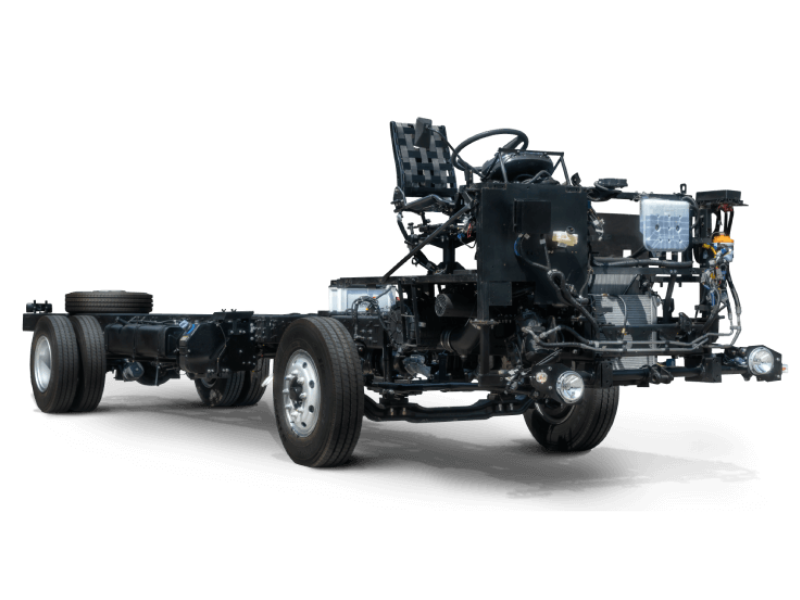

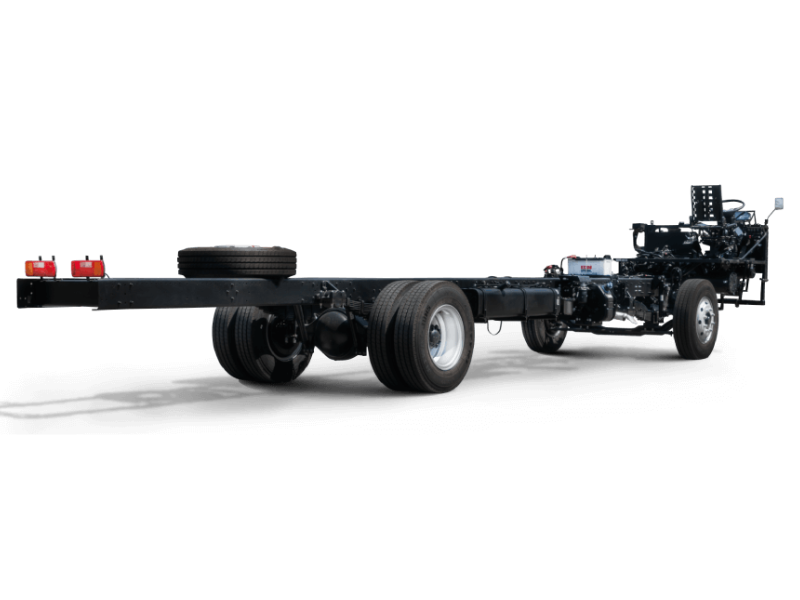

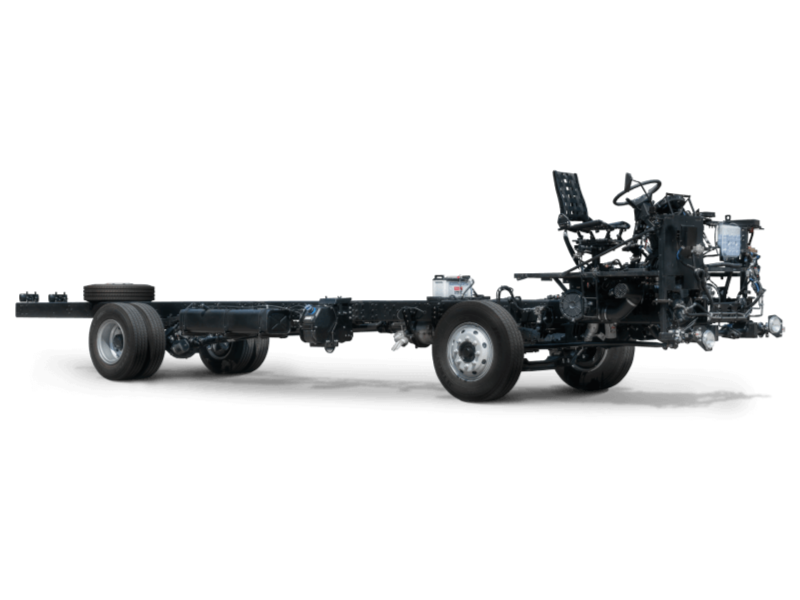

Eicher Pro 3014 Chassis M LPO
Ex-showroom Price
₹ 20,00,000
Variants
Eicher Pro 3014 Chassis M LPO Truck Description
The Eicher Pro 3014 Chassis M LPO is a specialized 14-tonne bus chassis featured on MotorBazee.com, featuring a Long Passenger Overhang (LPO) for maximum seating capacity. This M wheelbase variant is engineered for comfort and stability, making it an ideal choice for staff buses and school transport. Its fuel-efficient engine and low maintenance costs ensure high profitability for fleet owners. Visit MotorBazee.com for detailed bus chassis specifications.
Other Variants of Eicher Pro 3014 Chassis
Key Specifications of Eicher Pro 3014 Chassis M LPO Truck
-
Engine Type
E494 TC IC 3.8L -
Horse Power
134 kW @ 2600 RPM -
Wheelbase (mm)
5340 -
Fuel Tank Capacity
160 litres -
Gross Vehicle Weight (GVW)
14.49 -
Power Steering
Power steering
Calculate Eicher Pro 3014 Chassis M LPO Monthly EMI
20
Monthly EMI
Down Payment
₹ 0
Total Loan Amount
₹ 0
Specifications of Eicher Pro 3014 Chassis M LPO
Engine
- Alternator 110A - NAC/ 75A-AC
- Engine Type E494 TC IC 3.8L
- Horse Power 134 kW @ 2600 RPM
- Torque 600 Nm @ 1200 - 1800 RPM
- Turning Circle Diameter 19.8 m
Suspension
- Rear Suspension Weveller
Brakes
- Brakes Air Brakes with APU
Wheels
- Wheelbase (mm) 5340
Fuel Tank
- DEF Tank (L) 27 litres
- Fuel Tank Capacity 160 litres
Dimension & Weight
- Front Overhang (mm): 2205 mm
- Gross Vehicle Weight (GVW) 14.49
- Overall Length (in mm) 10660 mm
- Overall Width (in mm) 2540 mm
- Rear Overhang (mm): 3115 mm
Safety & Comfort
- Power Steering Power steering
Additional information
- Chassis Dimensions 230x76x6
- Propeller shaft Monotron, LFL
CLUTCH & TRANSMISSION
- Gearbox Synchromesh - 6F + 1R
- Transmission Description ET70S6
Clutch & Brake
- Clutch Type 362 mm
TYRES
- Tyres (Front & Rear) 10R20
BATTERY
- Battery Capacity 12V, 130Ah - NAC/ 24V, 150Ah-AC
