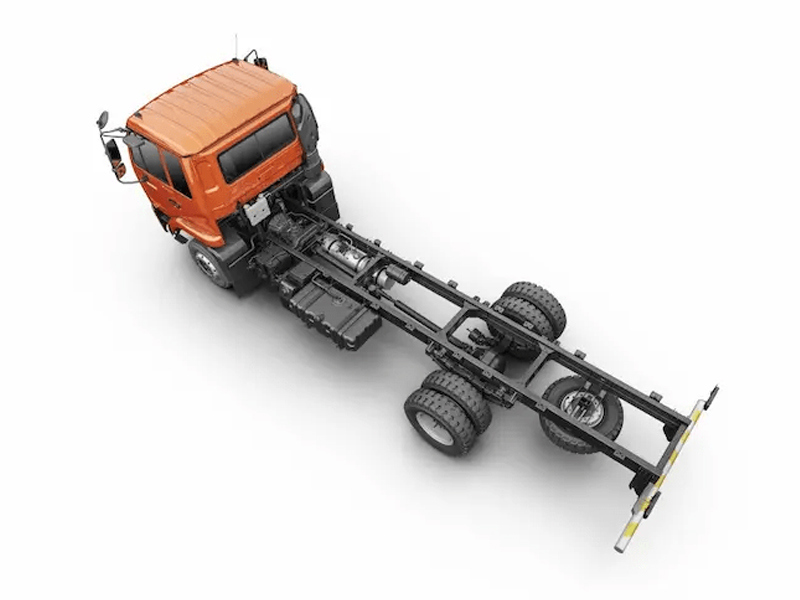

Eicher PRO 3014 CBC 4550

Specifications of Eicher PRO 3014 CBC 4550

Engine

• Battery Capacity 12V - 100Ah
• Engine E494 4 Cyl 4V CRS BSVI
• Warranty 3 Years/ Unlimited KMs on vehicle 4 Years/ Unlimited KMs on Engine and Gearbox

Steering

• Steering Hydraulic Assisted Power Steering (Tilt & Telescopic)

Suspension

• Front Parabolic with shock absorber
• Rear Semi elliptical laminated leaves with helper spring

Transmission

• Clutch Dia, Wear (mm) 330 mm
• Gear Box ET 50S7

Brakes

• Service Brakes Full Air brake divided line with auto slack adjuster at all wheel ends and APDA

Wheels

• Size 8.25R20
• Tyre 16PR Radial Tyres

Fuel Tank

• Fuel Tank Capacity 190
• Fuel Type Diesel

Dimension & Weight

• Cargo body length(Internal) 5808 mm
• Cargo Body width(Internal) 2125 mm
• Gross Vehicle Weight (GVW) 14250 kg
• Ground Clearance 220 mm
• Maintenance Interval (kms) 80000
• Max. Power Output 120 kW/ 160hp @2600 rpm
• Max. Torque Output 500 Nm @1200-1800 rpm
• Wheel base 4550 mm

Track

• Gradeability 25

Additional information

• Additional Feature 10T Hydraulic Jack
