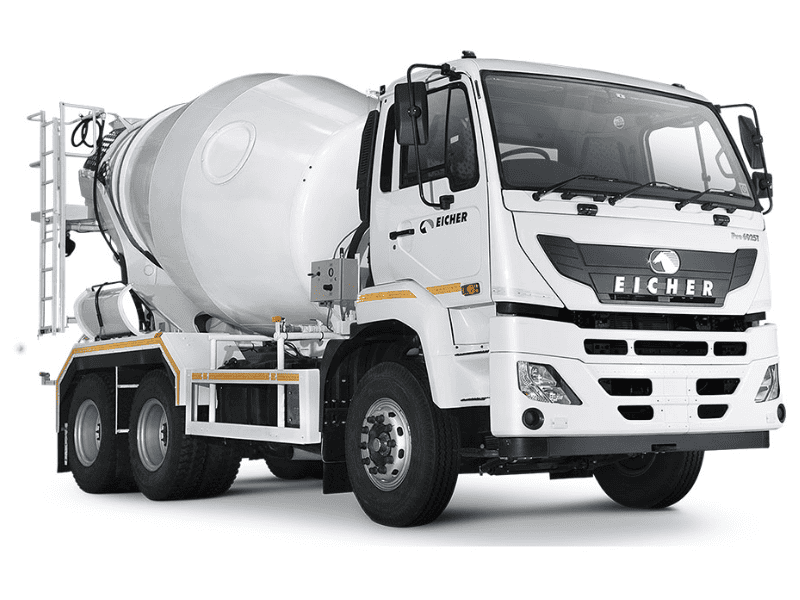

Eicher Pro 6025 TM Base
Ex-showroom Price
₹ 29,97,000
Variants
Eicher Pro 6025 TM Base Truck Description
The Eicher Pro 6025 TM Base is a powerful 25-tonne Transit Mixer chassis featured on MotorBazee.com, specifically built for the construction industry. Powered by a 210 HP engine and featuring a high-torque PTO, it easily manages heavy concrete loads in challenging urban jobsites. Its robust 6x4 axle configuration ensures excellent traction on loose soil. Find the best deals, expert reviews, and detailed spec sheets for the Pro 6025 TM at MotorBazee.com.
Key Specifications of Eicher Pro 6025 TM Base Truck
-
Engine Type
MDEP5 - BS3, SAE2, 225 CC Air compressor , With Engine PTO -
Horse Power
210HP @ 2200rpm -
Fuel Tank Capacity
220 litres, Rectangular Polymer Tank -
Gross Vehicle Weight (GVW)
25000 kg -
Wheel base
4000 mm
Calculate Eicher Pro 6025 TM Base Monthly EMI
20
Monthly EMI
Down Payment
₹ 0
Total Loan Amount
₹ 0
Specifications of Eicher Pro 6025 TM Base
Engine
- Engine Type MDEP5 - BS3, SAE2, 225 CC Air compressor , With Engine PTO
- Horse Power 210HP @ 2200rpm
- Max Torque 825Nm @ 1200~1600rpm
- Turning Circle Diameter 14.5 m
Axle
- Rear Axle VECV in House Axle Tandem-Fully floating Banjo
Steering
- Steering Tilt and Telescopic hyadraulic power steering
Suspension
- Suspension Front: Parabolic leaf spring with 4 leaves Rear: Semi elliptic bellcrank with 14 mm leaves Hydraulic double acting telescopic type at front only
Transmission
- Gearbox ET90S6 ( 6 Forward 1 Reverse) Without PTO
Wheels
- Tyre 10.00 x 20- 16PR
Fuel Tank
- Fuel Tank Capacity 220 litres, Rectangular Polymer Tank
Dimension & Weight
- Gross Vehicle Weight (GVW) 25000 kg
- Wheel base 4000 mm
Track
- Gradeability 27.5% with engine PTO, 28.6% without engine PTO operation
Additional information
- Chassis Type Domex650 ladder type joggle frame, 285 x 76 x 7 mm FUPD & RUPD
- Max Speed 79 kmph
TECHNICAL SPECIFICATIONS
- Electricals 2 x24 V, 150 Ah
Gearbox & Clutch
- Clutch Diameter (mm) 395 mm
- Clutch Type Booster Assisted, Push Type
