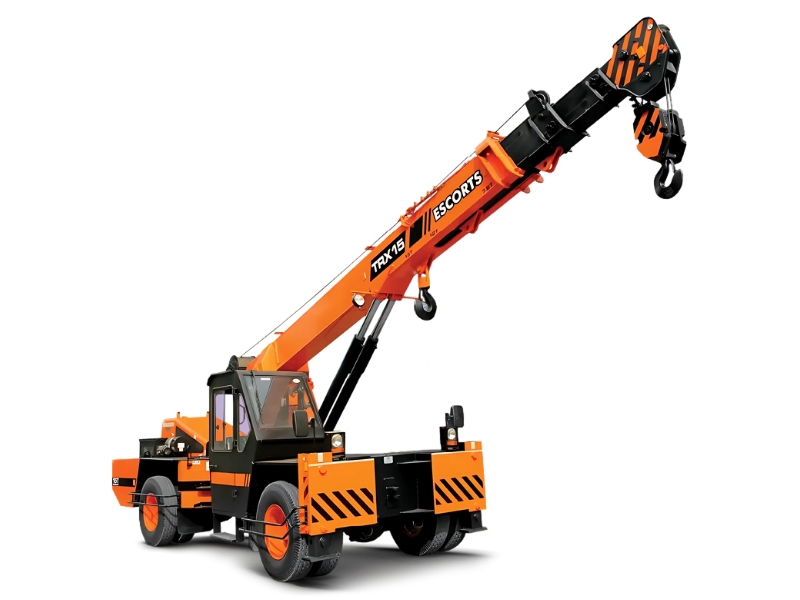

Escorts TRX 15 T

Specifications of Escorts TRX 15 T

Engine

• Engine Make/Model Diesel Engine of TATA MOTORS make, Model 497 TC, Turbo charged water cooled, developing 76Ps/55KW@2200 RPM or Equivalent Engine

Transmission

• Clutch Single, dry type friction clutch plate
• Gearbox Synchromesh Transmission Gearbox of TATA MOTORS make with Auxiliary Gearbox.
• Top Speed 10 forward and 2 reverse

Steering

• Turning radius 7.2 m

Dimensions

• Over all Width 2450 mm
• Overal Length 10075 mm
• Overall height 3215 mm
• Wheel Base 3950 mm

Axles

• Front Rigidly Mounted
• Front Axle 6455 kg
• Make & Model TATA
• Rear Mounted with two semi-elliptical springs
• Rear Axle 10190 kg
• total weight 16645 kg

Brakes

• Parking brakes Air operated, spring actuated fail safe brakes on front and rear axles
• Service brakes Fully air operated 'S' cam dual circuit brakes on front & rear axles.

Hydraulic Controls

• Steering Full Power orbitrol with twin hydraulic double acting rams 400 articuIation on either side

Electrical

• Electrical System 12 V, DC, Negative Earth 120 AH Batery for longer life

RATED CAPACITY

• Max Height 18.20 m

Maximum Material Densities – General Purpose

• Rated Capacity 15 Tonnes at - 1.50 m radius, 900 kg at -15.80 m radius

ALTERNATOR

• Drive 4 Wheel Drive

Capacity

• Hydraulic System Main pump of 46 cc/rev Control Valve-6 spool double acting with a built in relief & auxiliary valve

Boom Performance

• HOIST Hydraulically operated winch with max line speed 50m/min Built in safety brakes
• TYRES 11x20-16 PR

BOOM

• Luffing Range -10 to + 65

VEHICLE PERFORMANCE

• Creep Speed 1.3 kmph
• Gradeability 40% unladen
• Speed Max 41 kmph

WHEEL TRACK

• Front 1810 mm
• Rear 1810 mm
