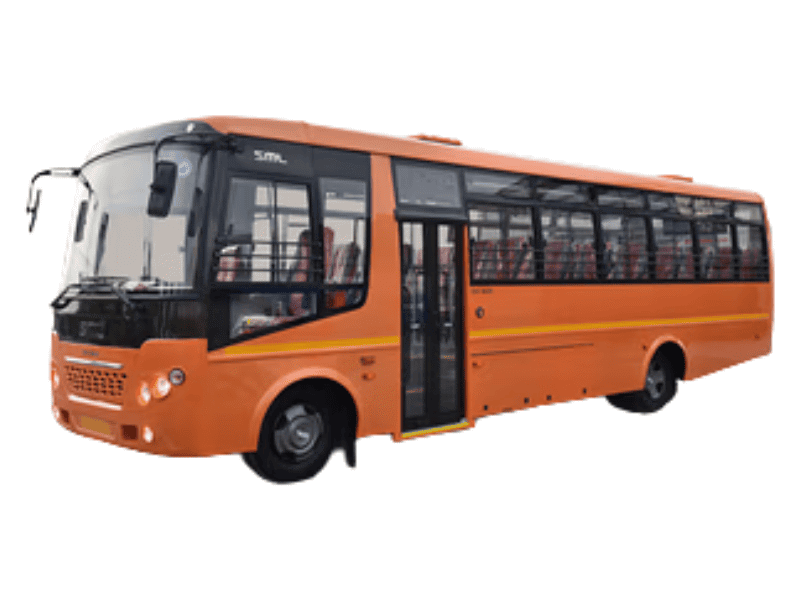

SML ISUZU BH Series Staff Bus 20 Seater/3335

Specifications of SML ISUZU BH Series Staff Bus 20 Seater/3335

Engine

• Emission norms BS-VI
• Engine Displacement 3455 cc
• Engine Type SLT-6 In-line common rail direct injection diesel turbocharger with intercooler
• Horse Power 100 hp
• Max Torque 315 Nm
• No. of cylinders 4
• Seating Configuration 3x3

Suspension

• Suspension Semi-elliptical with multi-leaf springs

Transmission

• Transmission Manual

Brakes

• Brakes (Front/Rear) Air Brakes (Dual circuit 'S' Cam, Fully Pneumatic assisted)

Wheels

• Wheelbase (mm) 3335 mm

Fuel Tank

• Fuel Tank Capacity 90 Ltr
• Fuel Type Diesel

Dimension & Weight

• Ground Clearance 228
• Overall Height (in mm) 2860
• Overall Length (in mm) 6515
• Overall Width (in mm) 2262
• Seating Capacity 20+D

Safety & Comfort

• Power Steering Power Steering
• Seat Type Standard

Additional information

• Body Option Fully Built
• Chassis Type Chassis with Cabin

Gear box

• Type 5 Forward + 1 Reverse

TYRES

• Tyres (Front & Rear) 8.25x16 - 16 PR

CLUTCH

• Type Dry Single Plate Diaphragm Type & Hydraulically Operated

BATTERY

• Battery Capacity 120 Ah
