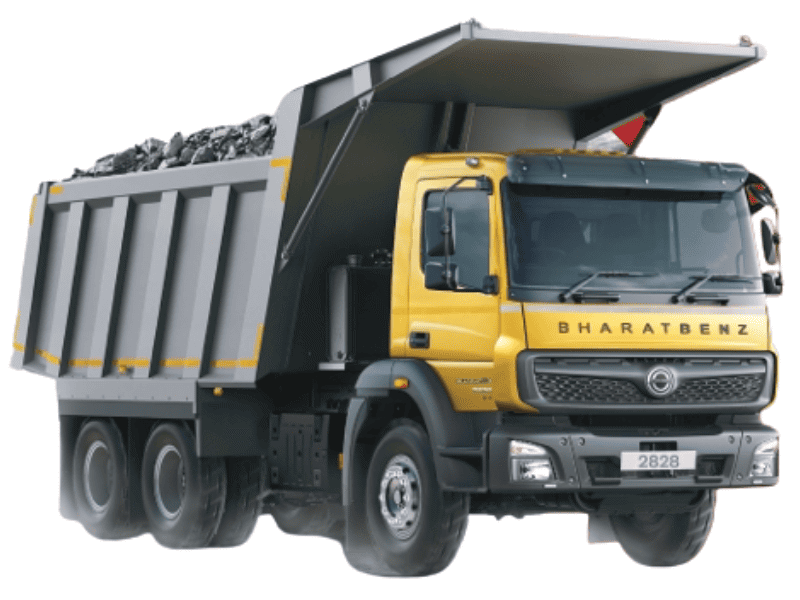

Bharat-Benz 2828CH 16 Cum Scoop

Specifications of Bharat-Benz 2828CH 16 Cum Scoop

Engine

• Emission norms Bharat Stage VI - OBD-2
• Engine Type OM 926
• Front Brakes @ 410 drum
• Horse Power 210kW @ 2200 rpm
• Max. Torque 1100Nm @ 1200 - 1600 rpm
• No. of cylinders 6, 7200
• Rear Brakes @ 410 drum
• Voltage - (V) 24V

Axle

• Front Axle IF7.0
• Rear Axle MT 610 Hub Reduction

Suspension

• Anti-Roll Bar Front: Standard / Rear RA2: Standard
• Frame Section ( D x W x T) mm 288x70x9
• Front Suspension Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
• Rear Suspension Bogie Suspension

Transmission

• Gear Box G 131, 9F+1R, Mechanical, Synchromesh Gears
• Power Take Off Standard

Brakes

• Parking Brakes Pneumatically Operated Hand Control Valve
• Service Brakes Pneumatic Foot Operated, Dual Line with ABS

Wheels

• Wheelbase (mm) 4275

Fuel Tank

• Adblue Tank 43L/36L
• Fuel Tank Capacity 215L /200L

Dimension & Weight

• Front Overhang (mm): 1485
• Gross Vehicle Weight (GVW) 27600 kgs
• Ground Clearance 331
• Overall Height (in mm) 2995
• Overall Length (in mm) 7185
• Overall Width (in mm) 2490
• Rear Overhang (mm): 750

Safety & Comfort

• Power Steering Hydraulic Power Assisted

Additional information

• Load Body Type 16 Cu.m Scoo

Performance

• Gradeability (%) 60.80%
• Max Speed 60 kmph
• TCD (m) 16.2m

Cabin Design

• Cabin Day Cabin

Specification

• REAR AXLE RATIO 5.39

CLUTCH

• Diameter (mm) 430, 3.5
• Type Single Dry Plate, Hydraulic Control

BATTERY

• Battery Capacity 120Ah

Wheels and Tyres

• Tyres Mining Tyre (11x20)
