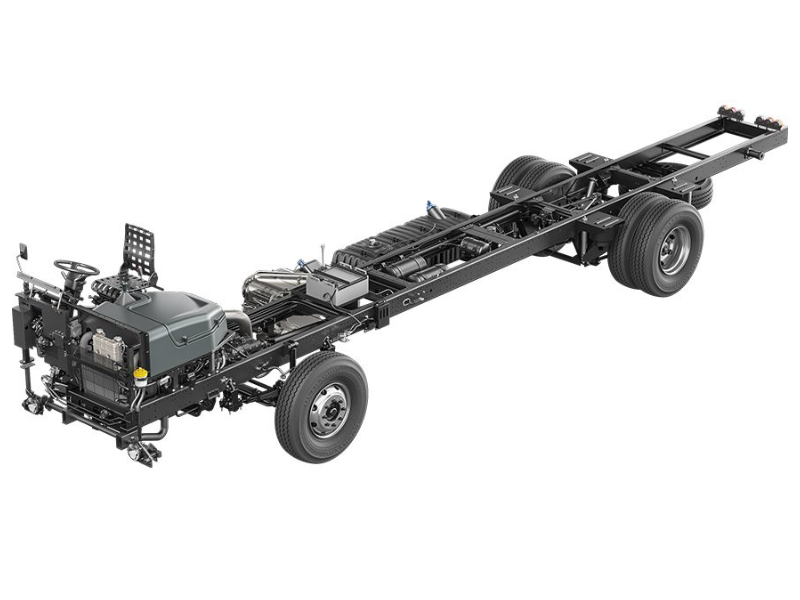

Eicher 6016 Chassis H LP
Ex-showroom Price
₹ 23,00,000
Variants
Eicher 6016 Chassis H LP Truck Description
The Eicher 6016 Chassis H LP is a heavy-duty 16-tonne bus chassis available on MotorBazee.com, specifically built for high-capacity passenger transport. The LP (Low Platform) design ensures easier boarding and better stability on urban routes. Featuring a 210 HP VEDX5 engine, it provides a smooth, reliable ride for staff or city transit. Explore the technical excellence and performance metrics of the Eicher 6016 H series exclusively on MotorBazee.com.
Other Variants of Eicher 6016 Chassis
Key Specifications of Eicher 6016 Chassis H LP Truck
-
Engine Type
VEDX5 -
Horse Power
155 kW @ 2200 Rpm -
Wheelbase (mm)
4200 mm -
Fuel Tank Capacity
250 litres -
Gross Vehicle Weight (GVW)
16.2 t -
Power Steering
Power steering
Calculate Eicher 6016 Chassis H LP Monthly EMI
20
Monthly EMI
Down Payment
₹ 0
Total Loan Amount
₹ 0
Specifications of Eicher 6016 Chassis H LP
Engine
- Engine Displacement 5132
- Engine Type VEDX5
- Horse Power 155 kW @ 2200 Rpm
- Torque 825 Nm@1200-1600 Rpm
- Turning Circle Diameter 18.9 m
Suspension
- Front Suspension Weveller
- Rear Suspension Weveller
Transmission
- Gear Box Synchromesh 6SPeed+1Rev
- Transmission ET70S6
Brakes
- Brakes Dual Circuit 'S' Cam Full Air brakes
Wheels
- Wheelbase (mm) 4200 mm
Fuel Tank
- DEF Tank (L) 33 litres
- Fuel Tank Capacity 250 litres
Dimension & Weight
- Front Overhang (mm): 1362 mm
- Gross Vehicle Weight (GVW) 16.2 t
- Ground Clearance 245 mm
- Rear Overhang (mm): 2520 mm
Safety & Comfort
- Power Steering Power steering
Additional information
- Chassis Dimensions 230 x 76 x 6 mm
- Chassis Type Domex 650 straight frame
- Overall Height (mm) 2728 mm
- Overall Length (mm) 8082 mm
- Overall Width (mm) 2540 mm
Clutch & Brake
- Clutch Type 395 mm
TYRES
- Tyres (Front & Rear) 10R20-16PR
BATTERY
- Battery Capacity 2x12V, 150Ah
ELECTRICAL SYSTEM
- Alternator Capacity 90A
Eicher 6016 Chassis H LP Reviews
0.0
Overall
Based on 0 Reviews
Write Review
Frequently Asked Questions
The Eicher 6016 Chassis H LP is a heavy-duty, 16-tonne bus chassis specifically built for high-capacity passenger transport. Its Low Platform (LP) design ensures easier boarding and better stability when used on urban routes.
Key specs include a VEDX5 engine, which delivers a Horse Power of 155 kW at 2200 Rpm. The chassis has a wheelbase of 4200 mm, a Gross Vehicle Weight (GVW) of 16.2 t, and the front suspension is Weveller.
The chassis utilizes an ET70S6 transmission with a Synchromesh 6Speed+1Rev gearbox. The braking system is equipped with Dual Circuit 'S' Cam Full Air brakes, providing robust stopping capability.
The overall length of the Eicher 6016 Chassis H LP is 8082 mm, and its overall width measures 2540 mm. It has a Gross Vehicle Weight (GVW) of 16.2 t and a ground clearance of 245 mm.
You can estimate monthly EMI payments using the provided EMI Calculator. The initial ex-showroom price is ₹ 23,00,000, and loan details include options for Down Payment, Interest Rate (like 14% or 22%), and Loan Period (ranging up to 84 months).
The engine is VEDX5 with an engine displacement of 5132 cc, providing a torque of 825 Nm at 1200-1600 Rpm. The chassis has two main fluid capacities: the general Fuel Tank Capacity is 250 litres, and the dedicated DEF Tank (L) is 33 litres.
