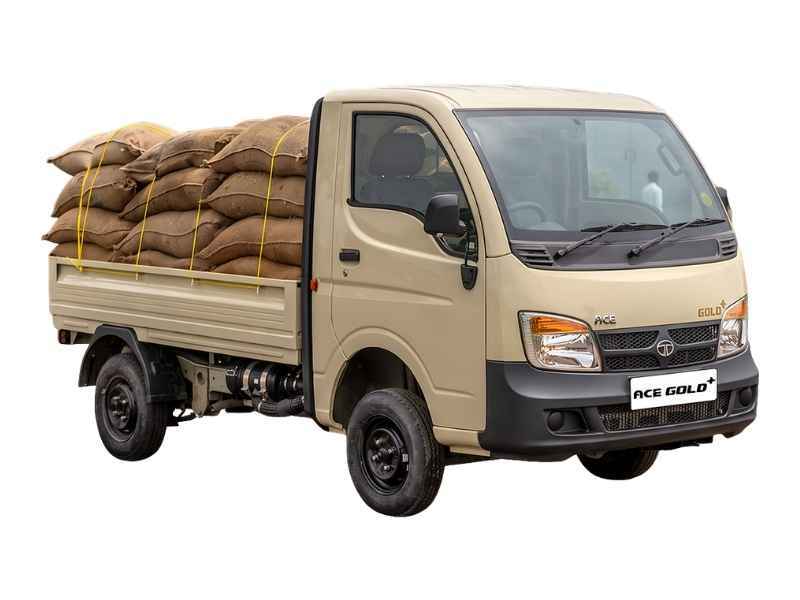

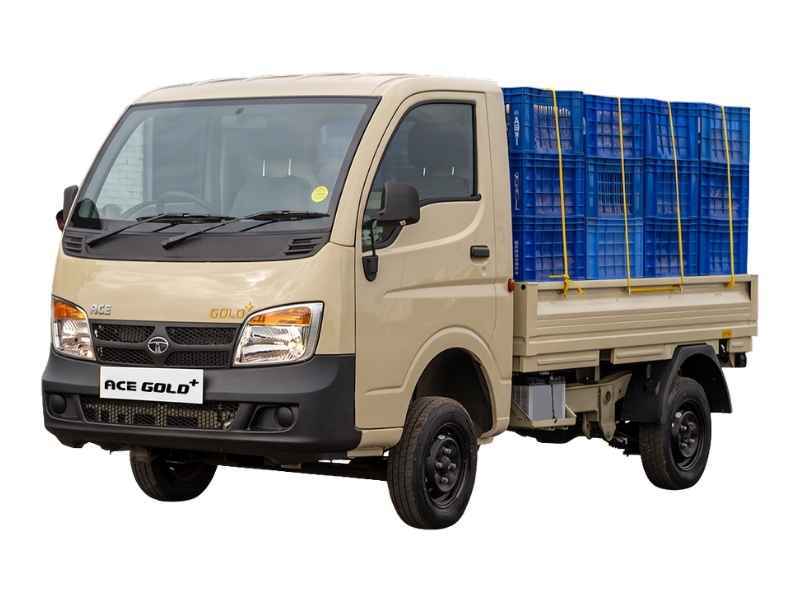

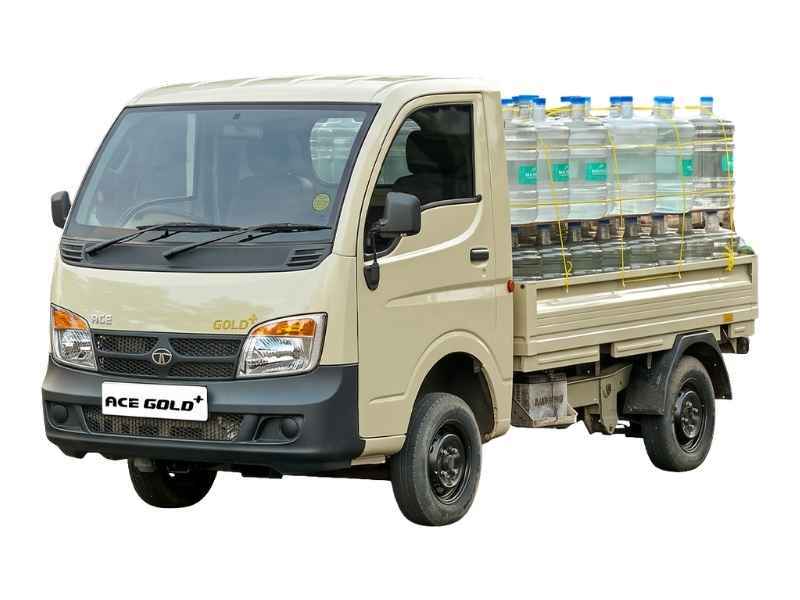

Tata Ace Gold Plus

Specifications of Tata Ace Gold Plus

Engine

• Capacity CC 702 CC
• Engine Type 4 Stroke, Turbocharged InterCooled, Direct Injection Common Rail Diesel engine
• Gradeability 30% *(Power Mode)
• Max Power POWER Mode - 16.2 kW (22PS) @ 3600 rpm ; CITY Mode – 12.8 kW (17PS) @ 3600 rpm
• Max Torque POWER Mode - 55 Nm@ 2000 – 2600 rpm ; CITY Mode - 40 Nm@ 2000 – 2600 rpm
• Steering Manual Steering System 27.9-30.4(Variable); 380 mm Dia
• Warranty 3 year / 1 00 000 km (whichever is earlier)

Suspension

• Front Rigid Axle with Parabolic Leaf Spring
• Front Suspension Parabolic leaf spring
• Rear Live Axle with Semi-elliptical Leaf Spring
• Rear Suspension Semi - Elliptical leaf spring
• Shock absorber Hydraulic double acting telescopic type

Transmission

• Clutch Single plate dry friction diaphragm type
• Gear Box GBS G65-5/6.31

Brakes

• Front Disc brakes
• Rear Drum Brakes

Wheels

• Tyre 145R12 LT 8PR RADIAL TUBELESS TYRES

Fuel Tank

• DEF Tank (L) 10.5 L
• Fuel Tank Capacity 30 L

Dimension & Weight

• Front Ground Clearance 160 mm
• Gross Vehicle Weight (GVW) 1815 kg
• Min TCR 4300 mm
• Overall Height 1845 mm
• Overall Length 3800 mm
• Overall Width 1500 mm
• Payload 900 kg
• Wheel base 2100

Track

• Gradeability 30% *(Power Mode)
• Max Speed 65 kmph
• Seating Capacity D+1

Additional information

• Front Track 1300 mm
• Rear Track 1320 mm
• Seating Capacity Driver + Co-driver D+1

Performance

• Gradability 35 % (Power Mode)

TECHNICAL SPECIFICATIONS

• Gearbox type GBSG65-5/6.31

Gear box

• No. of gears 5-Forward 1-Reverse
