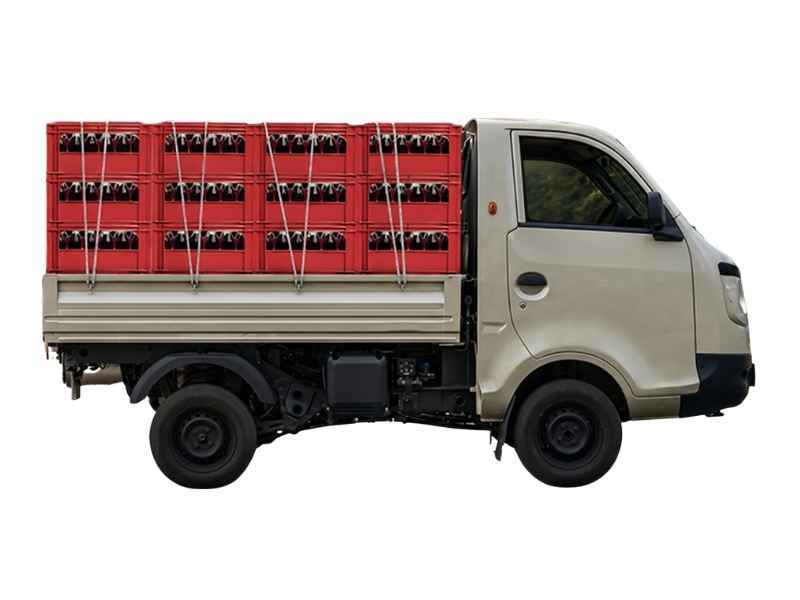

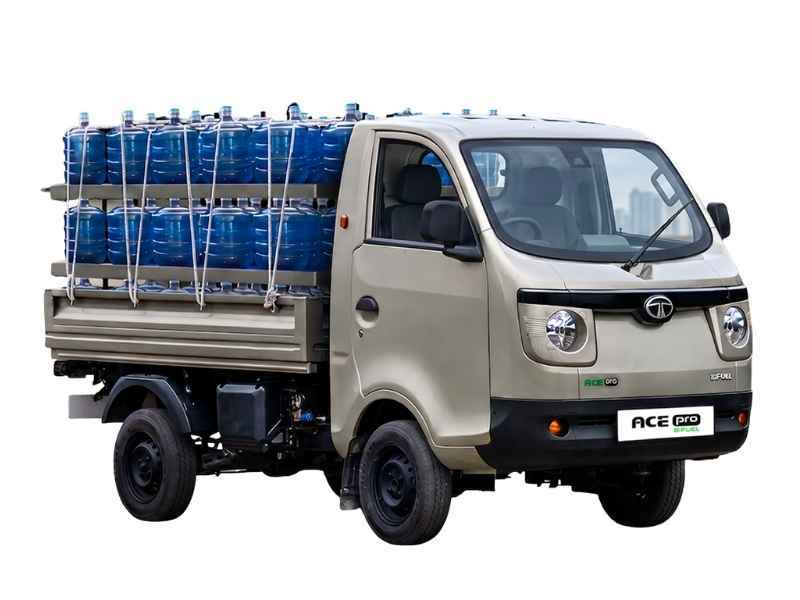

Tata Ace Pro Bi-fuel

Specifications of Tata Ace Pro Bi-fuel

Engine

• Engine Type 694cc BI-FUEL RDE BS-VI, 4 stroke Water Cooled
• Fuel Tank Capacity CNG - 45 Liters (1 cylinder); Petrol - 5 Liters
• Power 19 kW (25 hp) @4000 rpm (CNG mode)
• Torque 51 Nm @ 2 500 rpm (CNG Mode)

Brakes

• Brakes Front - Disc brakes; Rear - Drum Brakes
• Suspension Front Independent, McPherson strut
• Suspension Rear Semi trailing arm with coil spring & hydraulic damper

Wheels

• Wheelbase (mm) 1800 mm

Fuel Economy

• Fuel Economy 32.44 km/kg

Additional information

• GVW / GCW (Kgs) 1535 kg
• Safety Norms Compliance to AIS-096

Weight (kg)

• GVW 1535 kg
• Payload 750 kg

CLUTCH & TRANSMISSION

• Gearbox TA-59 with drive shafts
• Max Speed 55 kmph
• Steering Mechanical steering (Rack & Pinion)

Seating & Warranty

• Seats Driver + 1
• Warranty 72000 kms or 2 years** (whichever is earlier)

Wheels and Tyres

• Tyres 145R12

Vehicle Dimensions (mm)

• Ground Clearance 170 (Minimum in Laden condition)
• Height 1820 mm (Unladen)
• Length 3560 mm
• Min TCR 3.75 m
• Wheelbase 1800 mm
• Width 1497 mm
