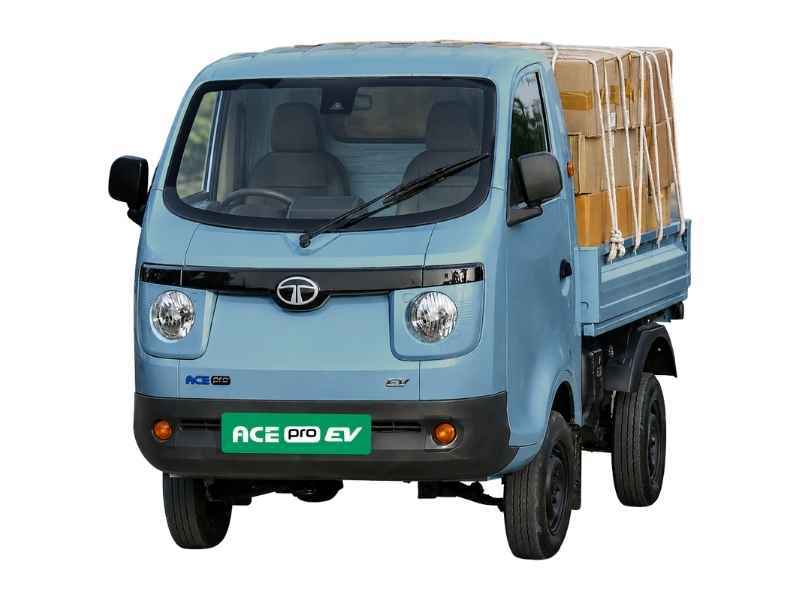

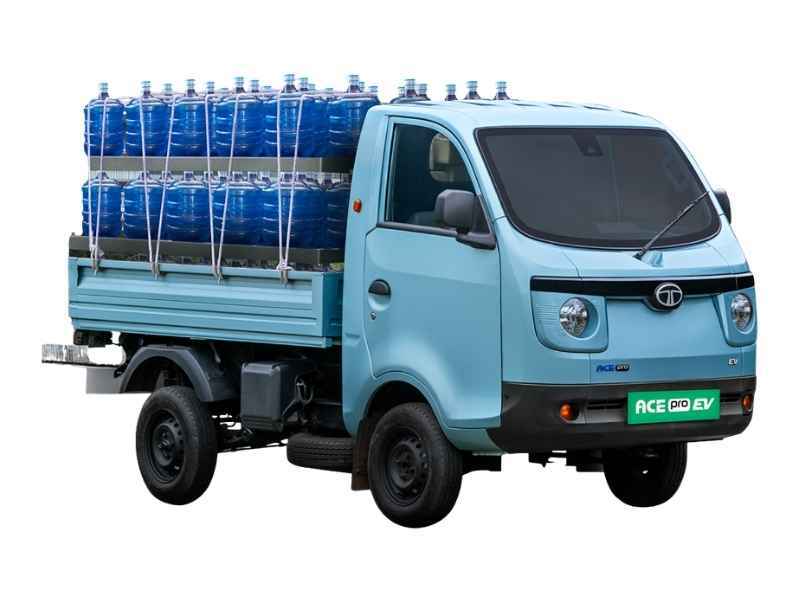

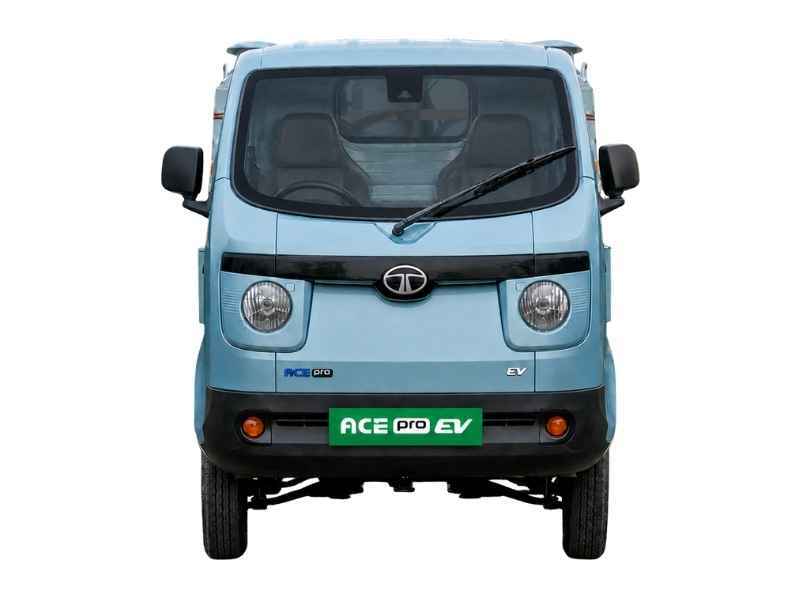

Tata Ace Pro EV

Specifications of Tata Ace Pro EV

Engine

• Gradeability 21%
• Power 29 kW @ 3500 RPM
• Torque 104 Nm @ 0-2500 RPM
• Type PMSM (Permanent Magnet Synchronous Motor)

Brakes

• Brakes Front - Disc brakes; Rear - Drum Brakes
• Suspension Front Independent, McPherson strut
• Suspension Rear Semi trailing arm with coil spring & hydraulic damper

Performance

• Gradability 21%

Weight (kg)

• GVW 1610kg
• Payload 750kg

CLUTCH & TRANSMISSION

• Gearbox E-Transaxle with drive shafts
• Max Speed 50 kmph
• Steering Mechanical steering (Rack & Pinion)

BATTERY

• Battery Chemistry Lithium Ion Iron phosphate (LFP)
• Battery Energy (kWh) 14.4 kWh
• Certified Range 14.4 kWh

Seating & Warranty

• Battery Warranty "175000 Kms / 8 years* "
• Seats D+1
• Warranty 72000 Kms / 2 years (as per signed off QTS)

Wheels and Tyres

• Tyres 145R12

Vehicle Dimensions (mm)

• Ground Clearance 170 (Minimum in Laden condition)
• Height 1820 mm (Unladen)
• Length 3560 mm
• Min TCR 3.75 m
• Wheelbase 1800 mm
• Width 1497 mm
