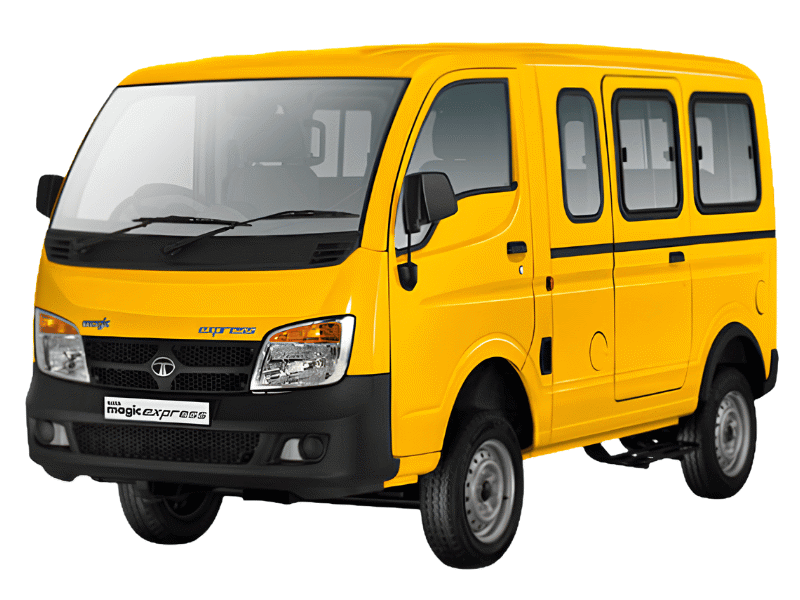

Tata Magic Express School

Specifications of Tata Magic Express School

Engine

• Clutch 170 mm
• Clutch Type Single Plate Dry Friction
• Engine Capacity 694 cc
• FRONT SUSPENSION Semi-Elliptical Leaf Spring
• Fuel Tank Capacity 26 L
• Fuel Type Petrol
• Gearbox 5 Forward + 1 Reverse
• Max Power 22 kW / 30 HP
• Max Torque 55 Nm @ 2500–3500 rpm
• Mileage (ARAI) 20.58 km/l
• No. of cylinders 2 Inline
• REAR SUSPENSION Semi-Elliptical Leaf Spring
• Seating Capacity 9+D
• Seating Configuration D+1/3/2/3
• Top Speed 65 kmph
• Transmission Manual
• Wheelbase 2100 mm

Brakes

• Brakes Hydraulic with Vacuum Booster and ABS 9.0
• Front Disc
• Rear Drum

Dimension & Weight

• Payload (Kgs) 750 kg

Additional information

• GVW / GCW (Kgs) 1830 kg
• Kerb Weight (Kgs) 1080 kg
• Overall Height (mm) 1890 mm
• Overall Length (mm) 3790 mm
• Overall Width (mm) 1500 mm

DIMENSION

• Engine TATA 275 MPFI03 Petrol
• Gradeability 11.6%

Tire & Wheel

• Min. Turning Circle Dia 8600 mm
• Tyre Size 155 R13 LT

Others

• Ground Clearance (mm) 150 mm

Fuel & Battery

• Battery 12V, 35Ah
• Warranty 2 Years / 72,000 km
