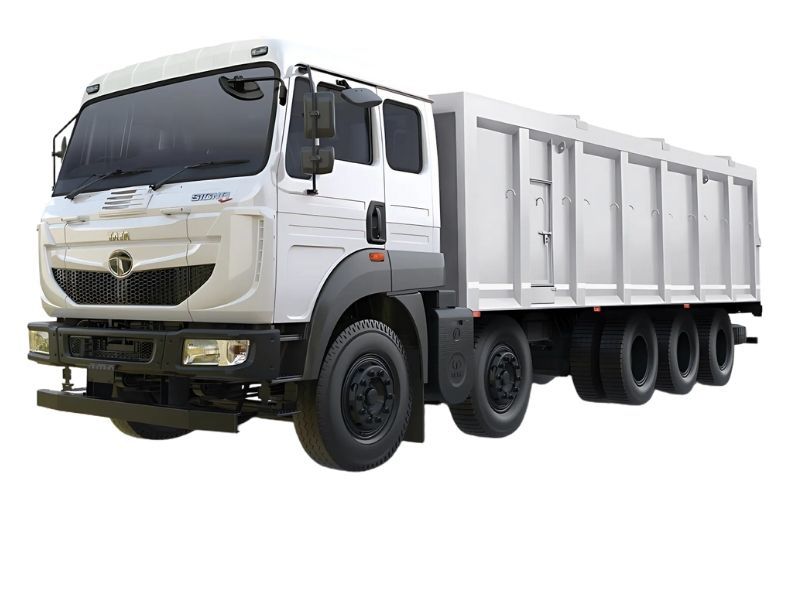

Tata SIGNA 4830 TK. FBV

Specifications of Tata SIGNA 4830 TK. FBV

Engine

• CAB/COWL Signa Sleeper Cab
• Clutch 430 mm
• CONFIGURATION 12x2,10 x 4,10 x 4
• DECK LENGTH IN 'mm (ft)' 8 839 (29) | 9 601 (31.5)
• Engine Cummins 6.7 LOBD-II
• Engine Capacity 6.702 cc
• FRONT AXLE Heavy duty forged I beam Reverse Elliot type
• FRONT SUSPENSION Parabolic Leaf Spring at Front
• Fuel Tank Capacity 3651 HDPE (Plastic Tank)
• GROSS VEHICLE WEIGHT 47 500 kg
• Ground Clearance 250 mm
• Maximum Power 224 kW @ 2 300 r/min
• Maximum Torque 1100 Nm @1100-1700 r/min
• NO OF TYRES 16 Tyres
• Rear Axle Single reduction heavy duty rear axle,Single reduction heavy duty rear axle with differential lock
• REAR SUSPENSION Bell Crank,Bell Crank,Bogie
• Transmission G1150 9S
• Tyres 295/90R20,295/90R20/11R20,11R20
• VENTILATION Blower/AC
• Wheelbase 68 WB
