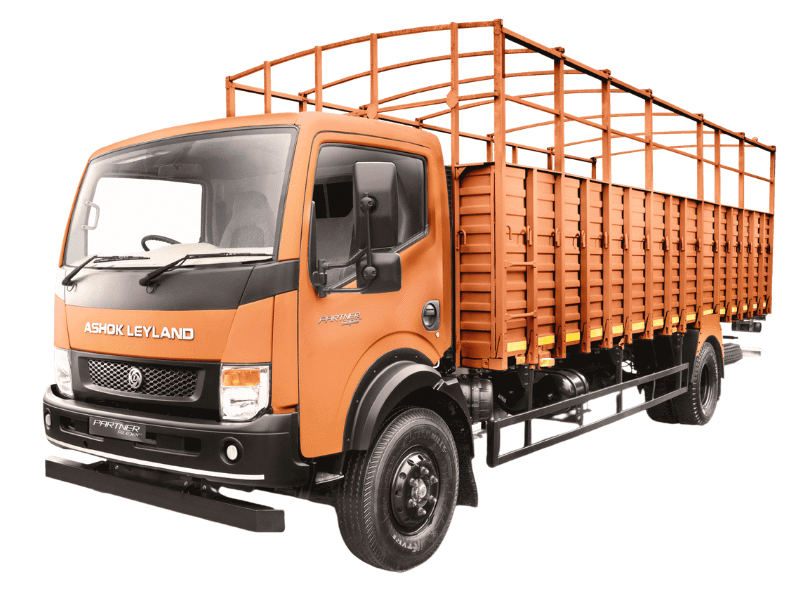

Ashok Leyland Partner Super 914 3425/CBC

Specifications of Ashok Leyland Partner Super 914 3425/CBC

Engine

• Engine Type ZD30 BS-VI Diesel with i-Gen6 technology
• Horse Power 104 kW (140 hp) @ 2750 rpm
• Max Torque 360 Nm @ 1350-2750 rpm

Axle

• Front Axle Forged I section - Reverse Elliot type
• Rear Axle Fully-floating single speed rear axle, RAR 4.56

Suspension

• Front Suspension Parabolic springs with shock absorber
• Rear Suspension Semi-elliptic multileaf with helper springs

Brakes

• Brakes Full air - dual line brakes, parking brakes on rear only

Wheels

• Wheelbase (mm) 3425

Fuel Tank

• DEF Tank (L) 20 L
• Fuel Tank Capacity 90 L | 185 L

Dimension & Weight

• Gross Vehicle Weight (GVW) 9150 kg
• Overall Height (in mm) 1614
• Overall Length (in mm) 4267
• Overall Width (in mm) 2074

Track

• Loading Span 4.3 (14 ft)
• Min. Turning Circle Diameter 12.5

Safety & Comfort

• Power Steering Hydraulic assisted power steering

Additional information

• Load Body Type CBC
• Propeller shaft Monotron propeller shaft

TECHNICAL SPECIFICATIONS

• Electricals Battery: 12 V - 75 Ah; Alternator: 70 A

Frame

• Main Section Rail Dimension (mm) 202 mm x 60 mm x 6 mm - Joggled frame

Cabin Design

• Cabin Tiltable day cab

CLUTCH

• Type 310 mm diameter - Diaphragm, Push type, Hydraulic actuated

Gearbox & Clutch

• Gearbox Model & Type 6 speed overdrive, Cable type CSO

Wheels and Tyres

• Tyres 7.50 x 16-16 PR, Optional: 7.5R16 - 16PR
