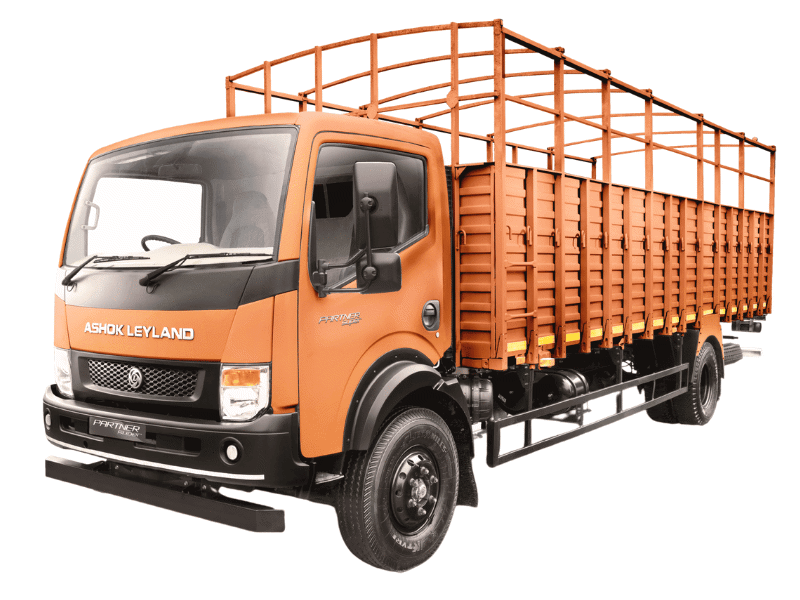

Ashok Leyland Partner Super 914 3955/HSD
Ex-showroom Price
₹ 20,50,000
Variants
Other Variants of Ashok Leyland Partner Super 914
Key Specifications of Ashok Leyland Partner Super 914 3955/HSD Truck
-
Engine Type
ZD30 BS-VI Diesel with i-Gen6 technology -
Horse Power
104 kW (140 hp) @ 2750 rpm -
Wheelbase (mm)
3955 -
Fuel Tank Capacity
90 L | 185 L -
Gross Vehicle Weight (GVW)
9150 kg -
Power Steering
Hydraulic assisted power steering
Calculate Ashok Leyland Partner Super 914 3955/HSD Monthly EMI
20
Monthly EMI
Down Payment
₹ 0
Total Loan Amount
₹ 0
Specifications of Ashok Leyland Partner Super 914 3955/HSD
Engine
- Engine Type ZD30 BS-VI Diesel with i-Gen6 technology
- Horse Power 104 kW (140 hp) @ 2750 rpm
- Max Torque 360 Nm @ 1350-2750 rpm
Axle
- Front Axle Forged I section - Reverse Elliot type
- Rear Axle Fully-floating single speed rear axle, RAR 4.56
Suspension
- Front Suspension Parabolic springs with shock absorber
- Rear Suspension Semi-elliptic multileaf with helper springs
Brakes
- Brakes Full air - dual line brakes, parking brakes on rear only
Wheels
- Wheelbase (mm) 3955
Fuel Tank
- DEF Tank (L) 20 L
- Fuel Tank Capacity 90 L | 185 L
Dimension & Weight
- Gross Vehicle Weight (GVW) 9150 kg
- Overall Height (in mm) 1614
- Overall Length (in mm) 5173
- Overall Width (in mm) 2074
Track
- Loading Span 5.2 (17 ft)
- Min. Turning Circle Diameter 14.5
Safety & Comfort
- Power Steering Hydraulic assisted power steering
Additional information
- Load Body Type HSD
- Propeller shaft Monotron propeller shaft
TECHNICAL SPECIFICATIONS
- Electricals Battery: 12 V - 75 Ah; Alternator: 70 A
Frame
- Main Section Rail Dimension (mm) 202 mm x 60 mm x 6 mm - Joggled frame
Cabin Design
- Cabin Tiltable day cab
CLUTCH
- Type 310 mm diameter - Diaphragm, Push type, Hydraulic actuated
Gearbox & Clutch
- Gearbox Model & Type 6 speed overdrive, Cable type CSO
Wheels and Tyres
- Tyres 7.50 x 16-16 PR, Optional: 7.5R16 - 16PR
Ashok Leyland Partner Super 914 3955/HSD Reviews
0.0
Overall
Based on 0 Reviews
Write Review
Frequently Asked Questions
The Ashok Leyland Partner Super 3955/HSD truck, with its 3955 HSD capacity, is designed for high-performance commercial transport tasks and is noted as being compact and reliable for city transport.
The engine is a ZD30 with i-Gen6 technology, featuring 4 cylinders. It delivers a maximum power of 140 hp and a maximum torque of 360 Nm. The battery capacity required for operation is 12V.
The truck has an overall length of 5173 mm, an overall width of 2074 mm, and an overall height of 1830 mm. Its GVW / GCW is listed at 11280 kg, and the payload capacity information is not provided.
Yes, you can calculate the estimated monthly EMI using the provided details. The current ex-showroom price is ₹ 20,50,000, with a down payment starting at ₹ 4,10,000. Loan terms include rates of 14%, 8%, and 22% for various loan periods up to 84 months.
The suspension consists of front parabolic springs with shock absorbers and rear semi-elliptic multileaf with helper spring. For brakes, the truck is equipped with full air-dual line brakes and includes parking brakes. The tires fit four wheels.
The vehicle features hydraulic assisted power steering for ease of handling. The transmission uses a cable type CSO, offering 6 forward gears plus one reverse gear, all with synchromesh overdrive functionality.
