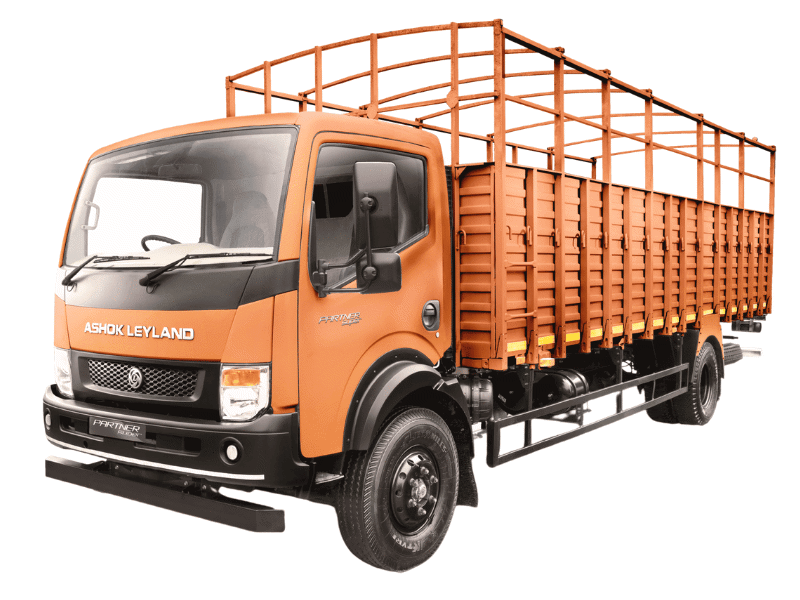

Ashok Leyland Partner Super 914 4500/HSD
Ex-showroom Price
₹ 20,50,000
Variants
Ashok Leyland Partner Super 914 4500/HSD Truck Description
Ashok Leyland Partner Super 914 4500 HSD is a variant of the Ashok Leyland Partner Super 914, an intermediate commercial truck, built around a 4500 mm wheelbase and an HSD body. The Ashok Leyland Partner Super 914 4500 HSD is aimed at FMCG, courier and general industrial goods, so owners can weigh it against other Partner Super 914 options before booking. Check the price of the Ashok Leyland Partner Super 914 4500 HSD on MotorBazee and explore financing before you visit a showroom.
Other Variants of Ashok Leyland Partner Super 914
Key Specifications of Ashok Leyland Partner Super 914 4500/HSD Truck
-
Engine Type
ZD30 BS-VI Diesel with i-Gen6 technology -
Horse Power
104 kW (140 hp) @ 2750 rpm -
Wheelbase (mm)
4500 mm -
Fuel Tank Capacity
90 L | 185 L -
Gross Vehicle Weight (GVW)
9150 kg -
Power Steering
Hydraulic assisted power steering
Calculate Ashok Leyland Partner Super 914 4500/HSD Monthly EMI
20
Monthly EMI
Down Payment
₹ 0
Total Loan Amount
₹ 0
Specifications of Ashok Leyland Partner Super 914 4500/HSD
Engine
- Engine Type ZD30 BS-VI Diesel with i-Gen6 technology
- Horse Power 104 kW (140 hp) @ 2750 rpm
- Max Torque 360 Nm @ 1350-2750 rpm
Axle
- Front Axle Forged I section - Reverse Elliot type
- Rear Axle Fully-floating single speed rear axle, RAR 4.56
Suspension
- Front Suspension Parabolic springs with shock absorber
- Rear Suspension Semi-elliptic multileaf with helper springs
Brakes
- Brakes Full air - dual line brakes, parking brakes on rear only
Wheels
- Wheelbase (mm) 4500 mm
Fuel Tank
- DEF Tank (L) 20 L
- Fuel Tank Capacity 90 L | 185 L
Dimension & Weight
- Gross Vehicle Weight (GVW) 9150 kg
- Overall Height (in mm) 1614
- Overall Length (in mm) 6096
- Overall Width (in mm) 2074
Track
- Loading Span 6.2 (20 ft)
- Min. Turning Circle Diameter 16.5
Safety & Comfort
- Power Steering Hydraulic assisted power steering
Additional information
- Load Body Type HSD
- Propeller shaft Monotron propeller shaft
TECHNICAL SPECIFICATIONS
- Electricals Battery: 12 V - 75 Ah; Alternator: 70 A
Frame
- Main Section Rail Dimension (mm) 202 mm x 60 mm x 6 mm - Joggled frame
Cabin Design
- Cabin Tiltable day cab
CLUTCH
- Type 310 mm diameter - Diaphragm, Push type, Hydraulic actuated
Gearbox & Clutch
- Gearbox Model & Type 6 speed overdrive, Cable type CSO
Wheels and Tyres
- Tyres 8.25 x 16-16 PR, Optional: 8.25R16 - 16PR
Ashok Leyland Partner Super 914 4500/HSD Reviews
0.0
Overall
Based on 0 Reviews
Write Review
Frequently Asked Questions
The Ashok Leyland Partner Super 4500/HSD truck is designed to be suitable for heavy-duty transport. It offers excellent payload capacity and durability, making it an efficient choice for demanding hauling needs.
Key specifications include a maximum power of 140 hp, a wheelbase of 4500 mm, and a GVW/GCW of 11280 kg. The engine is an Emission norm BS6 ZD30 with i-Gen6 technology, providing robust performance.
The suspension features front parabolic springs with shock absorbers and rear semi-elliptic multileaf springs with helper springs. The transmission is a Synchromesh overdrive gearbox, which operates via cable type CSO, offering 6 Forward and 1 Reverse gears.
Yes, it includes Power Steering and an adjustable driver seat that is 4-way adjustable. Additional comfort features include a Day Cabin body option and a standard seating capacity of D+2.
MotorBazee provides tools to calculate monthly EMI payments, including down payment amounts. Financing options can be reviewed with different loan periods (up to 84 months) and associated interest rates.
