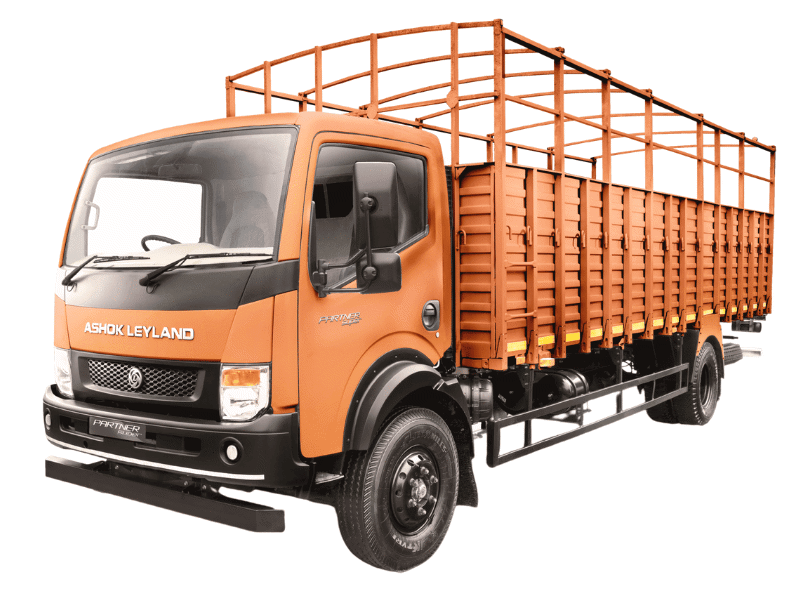

Ashok Leyland Partner Super 914 3425/HSD
Ex-showroom Price
₹ 20,50,000
Variants
Other Variants of Ashok Leyland Partner Super 914
Key Specifications of Ashok Leyland Partner Super 914 3425/HSD Truck
-
Engine Type
ZD30 BS-VI Diesel with i-Gen6 technology -
Horse Power
104 kW (140 hp) @ 2750 rpm -
Wheelbase (mm)
3425 -
Fuel Tank Capacity
90 L | 185 L -
Gross Vehicle Weight (GVW)
9150 kg -
Power Steering
Hydraulic assisted power steering
Calculate Ashok Leyland Partner Super 914 3425/HSD Monthly EMI
20
Monthly EMI
Down Payment
₹ 0
Total Loan Amount
₹ 0
Specifications of Ashok Leyland Partner Super 914 3425/HSD
Engine
- Engine Type ZD30 BS-VI Diesel with i-Gen6 technology
- Horse Power 104 kW (140 hp) @ 2750 rpm
- Max Torque 360 Nm @ 1350-2750 rpm
Axle
- Front Axle Forged I section - Reverse Elliot type
- Rear Axle Fully-floating single speed rear axle, RAR 4.56
Suspension
- Front Suspension Parabolic springs with shock absorber
- Rear Suspension Semi-elliptic multileaf with helper springs
Brakes
- Brakes Full air - dual line brakes, parking brakes on rear only
Wheels
- Wheelbase (mm) 3425
Fuel Tank
- DEF Tank (L) 20 L
- Fuel Tank Capacity 90 L | 185 L
Dimension & Weight
- Gross Vehicle Weight (GVW) 9150 kg
- Overall Height (in mm) 1614
- Overall Length (in mm) 4267
- Overall Width (in mm) 2074
Track
- Loading Span 4.3 (14 ft)
- Min. Turning Circle Diameter 12.5
Safety & Comfort
- Power Steering Hydraulic assisted power steering
Additional information
- Load Body Type HSD
- Propeller shaft Monotron propeller shaft
TECHNICAL SPECIFICATIONS
- Electricals Battery: 12 V - 75 Ah; Alternator: 70 A
Frame
- Main Section Rail Dimension (mm) 202 mm x 60 mm x 6 mm - Joggled frame
Cabin Design
- Cabin Tiltable day cab
CLUTCH
- Type 310 mm diameter - Diaphragm, Push type, Hydraulic actuated
Gearbox & Clutch
- Gearbox Model & Type 6 speed overdrive, Cable type CSO
Wheels and Tyres
- Tyres 7.50 x 16-16 PR, Optional: 7.5R16 - 16PR
Ashok Leyland Partner Super 914 3425/HSD Reviews
0.0
Overall
Based on 0 Reviews
Write Review
Frequently Asked Questions
The Ashok Leyland Partner Super/3425 HSD, with its reliable engine, is considered perfect for medium-duty commercial transport operations and is noted as being suitable for short haul and fuel-efficient operations.
The truck features an engine with a displacement (cc) that is not specified, utilizing BS6 norms. It has a max power of 140 hp and max torque of 360 Nm, powered by a ZD30 engine equipped with i-Gen6 technology.
The vehicle has an Axle Configuration of 4x2. The suspension consists of Front Parabolic springs with shock absorber, and Rear Semi-elliptic multileaf with helper spring.
The current ex-showroom price listed is ₹ 20,50,000. Financing options allow customers to calculate monthly EMI using down payments ranging from ₹ 4,10,000 to ₹ 20,50,000 over various loan periods up to 84 months.
For improved occupant well-being, the truck offers power steering (both Yes in Power Steering and Additional information sections), seat belts, a standard seating type, and an adjustable driver seat that is four ways adjustable.
The transmission features a Diaphragm, push type, hydraulic actuated clutch of 310 mm diameter, along with a Synchromesh overdrive gear box. For safety, it is equipped with full air-dual line brakes and rear parking brakes.
