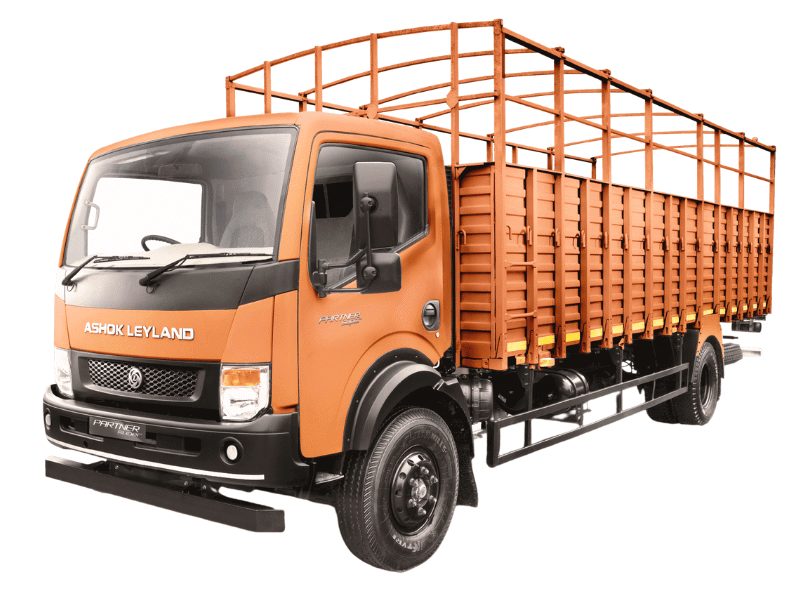

Ashok Leyland Partner Super 914 4900/HSD
Ex-showroom Price
₹ 20,50,000
Variants
Other Variants of Ashok Leyland Partner Super 914
Key Specifications of Ashok Leyland Partner Super 914 4900/HSD Truck
-
Engine Type
ZD30 BS-VI Diesel with i-Gen6 technology -
Horse Power
104 kW (140 hp) @ 2750 rpm -
Wheelbase (mm)
4900 mm -
Fuel Tank Capacity
90 L | 185 L -
Gross Vehicle Weight (GVW)
9150 kg -
Power Steering
Hydraulic assisted power steering
Calculate Ashok Leyland Partner Super 914 4900/HSD Monthly EMI
20
Monthly EMI
Down Payment
₹ 0
Total Loan Amount
₹ 0
Specifications of Ashok Leyland Partner Super 914 4900/HSD
Engine
- Engine Type ZD30 BS-VI Diesel with i-Gen6 technology
- Horse Power 104 kW (140 hp) @ 2750 rpm
- Max Torque 360 Nm @ 1350-2750 rpm
Axle
- Front Axle Forged I section - Reverse Elliot type
- Rear Axle Fully-floating single speed rear axle, RAR 4.56
Suspension
- Front Suspension Parabolic springs with shock absorber
- Rear Suspension Semi-elliptic multileaf with helper springs
Brakes
- Brakes Full air - dual line brakes, parking brakes on rear only
Wheels
- Wheelbase (mm) 4900 mm
Fuel Tank
- DEF Tank (L) 20 L
- Fuel Tank Capacity 90 L | 185 L
Dimension & Weight
- Gross Vehicle Weight (GVW) 9150 kg
- Overall Height (in mm) 1614
- Overall Length (in mm) 6706
- Overall Width (in mm) 2074
Track
- Loading Span 6.8 (22 ft )
- Min. Turning Circle Diameter 17.5
Safety & Comfort
- Power Steering Hydraulic assisted power steering
Additional information
- Load Body Type HSD
- Propeller shaft Monotron propeller shaft
TECHNICAL SPECIFICATIONS
- Electricals Battery: 12 V - 75 Ah; Alternator: 70 A
Frame
- Main Section Rail Dimension (mm) 202 mm x 60 mm x 6 mm - Joggled frame
Cabin Design
- Cabin Tiltable day cab
CLUTCH
- Type 310 mm diameter - Diaphragm, Push type, Hydraulic actuated
Gearbox & Clutch
- Gearbox Model & Type 6 speed overdrive, Cable type CSO
Wheels and Tyres
- Tyres 8.25 x 16-16 PR, Optional: 8.25R16 - 16PR
Ashok Leyland Partner Super 914 4900/HSD Reviews
0.0
Overall
Based on 0 Reviews
Write Review
Frequently Asked Questions
The listed ex-showroom price for the Ashok Leyland Partner Super 4900/HSD is ₹ 20,50,000.
Key specifications include a Max Power of 140 hp, a wheelbase of 4900 mm, and a Fuel Tank Capacity of 90/185 Ltr. It has a GVW / GCW of 11280 kg.
Yes, the Ashok Leyland Partner Super 4900/HSD is equipped with power steering. The technical details also specify that it has a hydraulic assisted power steering system.
The page provides information on calculating the monthly EMI with various loan periods, including options up to 84 months. Customers can also view details regarding the down payment and interest rate.
The transmission utilizes a Synchromesh overdrive gearbox with cable type CSO, offering 6 Forward + 1 Reverse. For brakes, it features full air-dual line brakes, along with an on rear only parking brake.
The vehicle has a GVW / GCW of 11280 kg. Its physical dimensions are an Overall Height of 1830 mm, Overall Length of 6706 mm, and Overall Width of 2074 mm.
